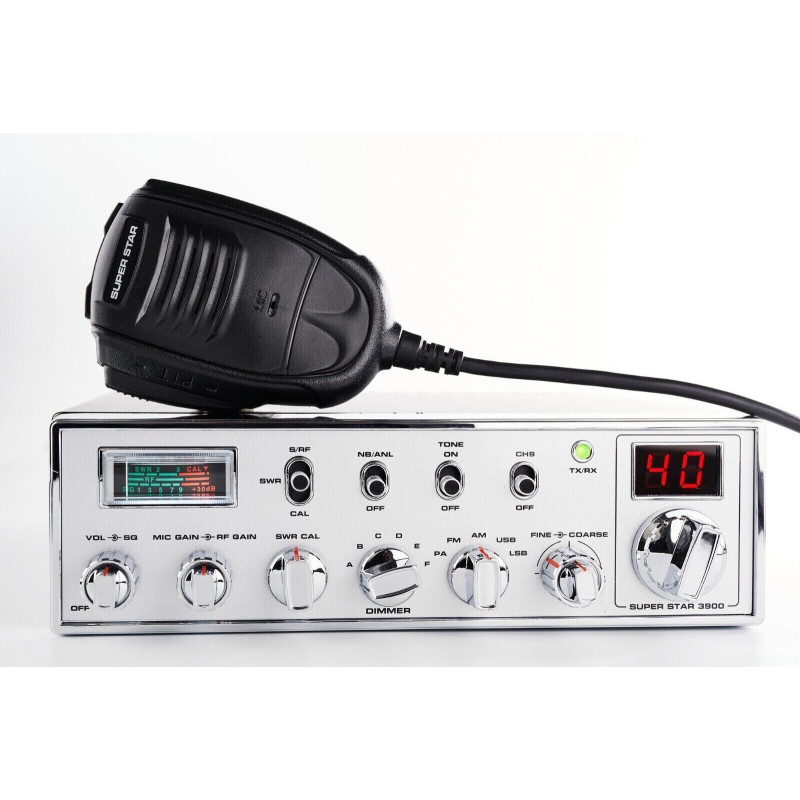

Superstar 3900 (2023 version)

Export version power PEP (PEAK MAX målt på DUMMYLOAD): FM: 12-14W AM:25-30W / SSB:40-45W / 25.615 - 28.315 MHz

Du kan nu deaktivere og aktivere bip-tonen direkte fra menuen uden programmeringssoftware.

Med mikrofonen kan du vælge alle EU kanal - multinormer, som DE, UK, RU, EU osv.

Indtil radioen er lavet om til export version, vil bandselector fungere som dimmer!

Har lavet en powertest på radioen. Eventuel tvivl om output er gjort til skamme :0)

Update: you can now deactivate and activate the beep tone directly from the menu without programming software.

In 2023, the new Super Star 3900 comes with some improvements, such as: display with function indicator and screen lighting adjustment, new handheld microphone with channel change buttons (Up/Down), new board design with micro components which translates into a reduction in the overall weight: improvements that in no way alter its essence and that make the Super Star 3900 remain stronger than ever as an icon of the citizen band radio.

Features

Modulation: AM / FM / LSB / USB

Multi-bands: Yes

Output power: AM/FM: 4 Watt / SSB: 12 Watt

Channels: 40 AM / FM

Display type: Multi-color backlight

Display colors: Red

Export version: AM:12-15W / SSB:20-30W / 25.615 - 28.315 MHz

VOX Function: Yes

Noise blanker: Yes

Squelch: Automatic squelch / Manual squelch /

Scan function: Yes

Memory channels: Yes

External speaker socket: Yes

External S-meter socket: Yes

External PA socket: Yes

S-meter: Yes

MIC gain: Yes

RF gain: Yes

TOT (time out timer): Yes

Dual watch: Yes

RX Noise reduction: Yes

TX Noise reduction: Yes

Electrical data

Voltage: 13,8 Volt

Frequency stability: ± 5 ppm

Fuse: 10A (250 Volt)

Operating temperature: -20° to +55° C

Frequency control: PLL synthesizer

Operating mode: F3E (FM) / A3E (AM) / J3E (SSB)

Transmitter

Audio frequency response: 450 Hz - 2.5 kHz

Current: 5 A

Distortion: <10%

Receiver

Frequency response: 300 Hz - 2.8 kHz

Maximum audio power: 3 Watt

Internal speaker: 8 Ohm, round

SSB sensitivity: 0.25 µV for 10 dB (S+N)/N at greater than 1/2 Watt of audio output.

AM sensitivity: 1.0 µV for 10 dB (S+N)/N at greater than 1/2 Watt of audio output.

Mechanical data

Length: 287 mm

Height: 61 mm

Width: 200 mm

Weight: 1500 gram

Antenna connector: UHF (PL) female (SO-239)

Inside the box

Transceiver: 1 pcs

Microphone: 1 pcs

Fixing screws: 1 set

Mounting bracket: 1 pcs

Power lead: 1 pcs
