The smaller ring is designed to fit 1.5 inch (38.1mm) max poles and is 4mm thick stainless.
The coax slot is 23mm wide which will pass an N type plug easily.
Weight is approx 350 grams.
There are 4 guy rope holes 12mm in diameter.
Designed for lightweight masts such as portable masts, push up masts (metal or fibreglass) to allow guying of a rotating mast without the need to have a large coax loop to avoid the guy ropes. The plastic bearing rings ensure metal never touches the mast to cause damage, ideal for fibreglass masts..
Mast size standard Ø1.5"(38.1mm). Specials are possible down to Ø20mm, please enquire.
The ring is 4mm thick stainless and has hole patterns for 4 guy ropes, but can be used with 3 guy ropes.
Slot width 23mm (passes N and PL259 plugs)
Weight 350 grams

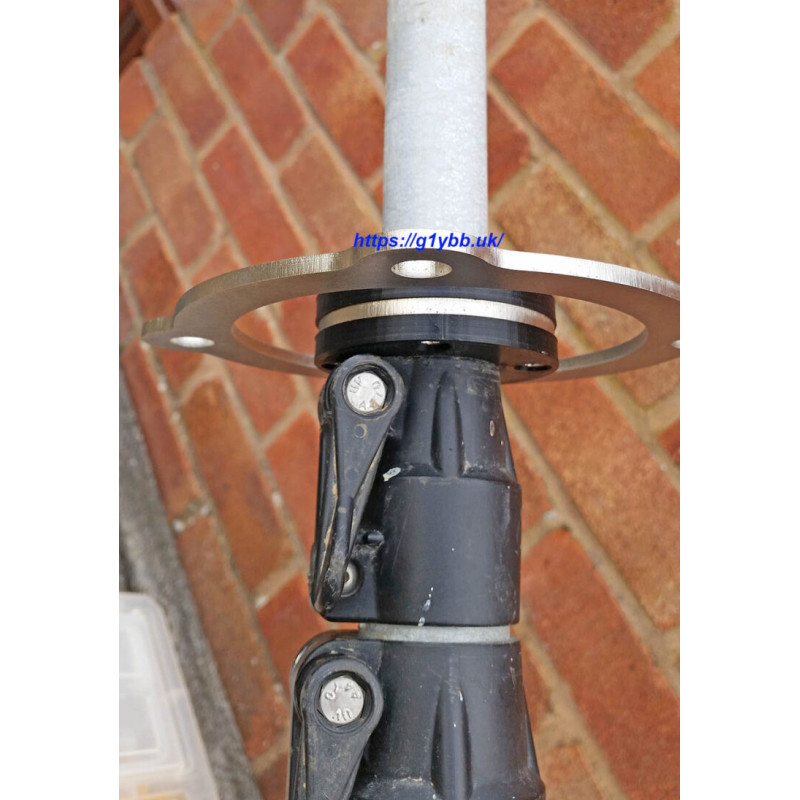

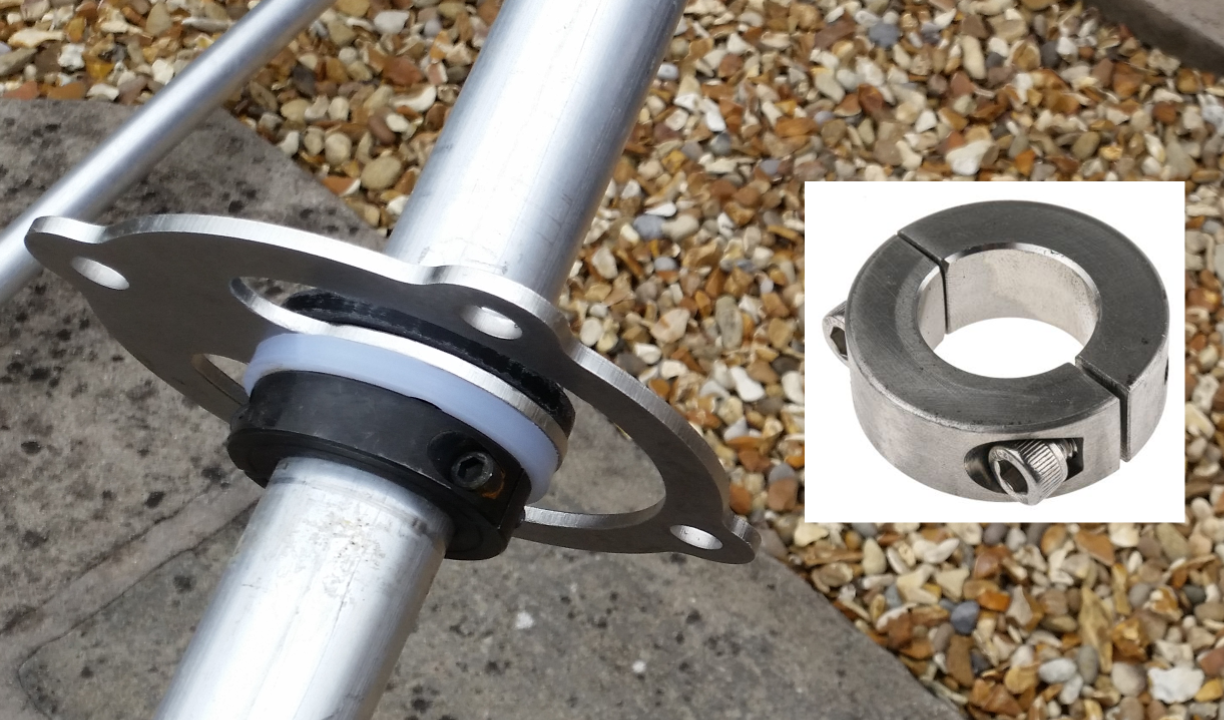

The guy ring is intended to sit on mast joiners or section tops as seen in the main image on the page. If the mast has nothing for it to sit on then a very good option is a double split collar clamp (shaft collar) as seen below. Single split shaft collar can be used but un-split with grub screw are not recommended as will damage the mast.
Din vurderings anerkendelse kan ikke sendes
Rapporter kommentarer
Rapport sendt
Din rapport kan ikke sendes
Skriv din anbefaling
Vurdering sendt
Din vurdering kan ikke sendes
The smaller ring is designed to fit 1.5 inch (38.1mm) max poles and is 4mm thick stainless.
The coax slot is 23mm wide which will pass an N type plug easily.
Weight is approx 350 grams.
There are 4 guy rope holes 12mm in diameter.
