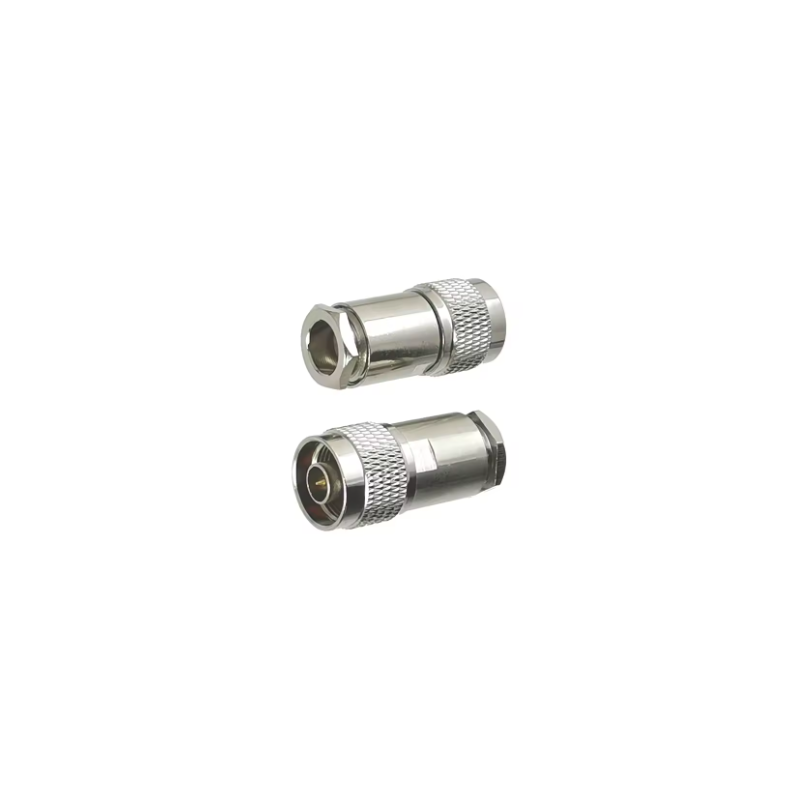

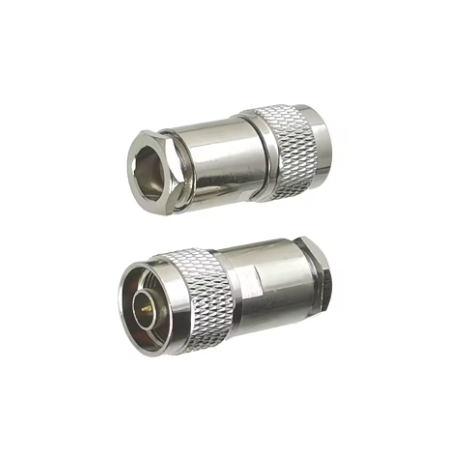

N connector RG213/RG214/RF400UF/LMR400/Aircell10/Aircom plus 10mm til lodning.
God kvalitet, Messing. Med pakning til udendørsbrug.
Ved brug af tyk inderleder, prikker man den lille hvide teflonskive ud i bunden af teflonbøsningen til stiften så hullet bliver større.
N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.
Offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.
The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.
| Product Series: | N |
| Product Type: |
Cable mount |
| Application: | Clamp |
| Attachment / Affixment: | - |
| Body Plating: | Nickel-plated |
| Body Termination: | Clamp |
| Cable Type: | 10mm |
| Connector Body Style: |
Straight |
| Connector Material: | Brass |
| Contact Plating: | Nickel-plated |
| Contact Termination: | Solder |
| Gender: | Plug |
| Impedance: | 50 Ohm |
