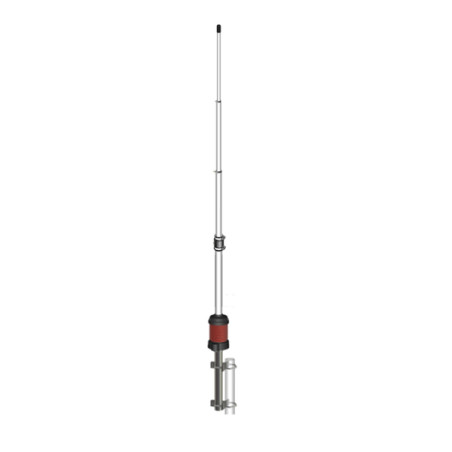

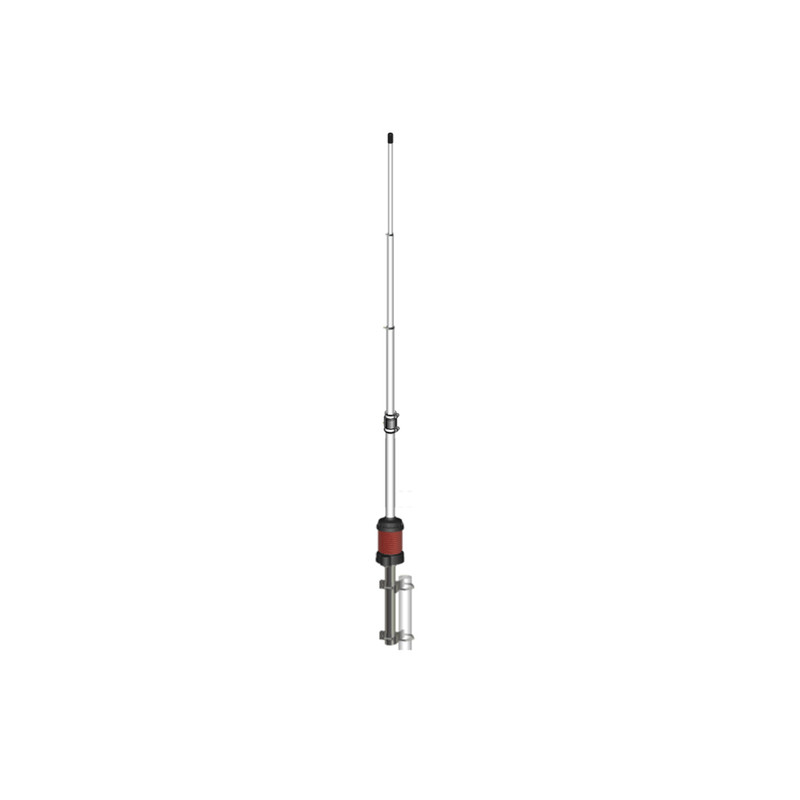

Sirio Gain Master 2024 5/8

The Sirio Gain Master 5/8 is a 0.625 high tech fiberglass base station wide band antenna from 10 to 12 meter* band, completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth. Engineered with the most advanced available technologies it is completely manufactured in Italy with high quality materials. The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary. The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.
Electrical Data:

Type: 0.625 λ center feed

Radiation: Omnidirectional

Polarization: Linear vertical

Frequency range: 25.5-30 MHz No tuning required

Systems: 10m-HAM

Gain: 1 to 2 dB higher than conventional 5/8 λ

Max Power: 500 Watts (CW) continuous

Grounding protection: DC-Ground

Connector: UHF-female (SO-239)

Mechanical Data:

Materials: Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized

Height (approx): 7360 mm / 24.15 ft

Weight (approx): 3000 gr / 6.61 lb

Mounting type: On-Mast
