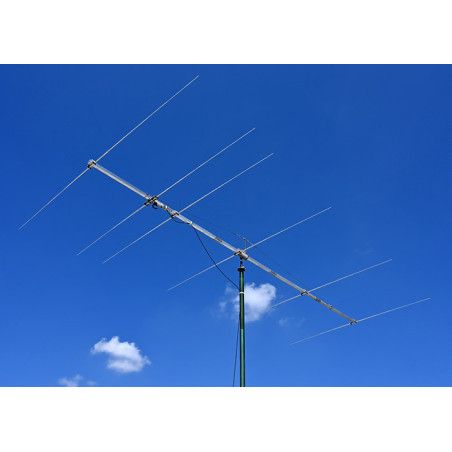

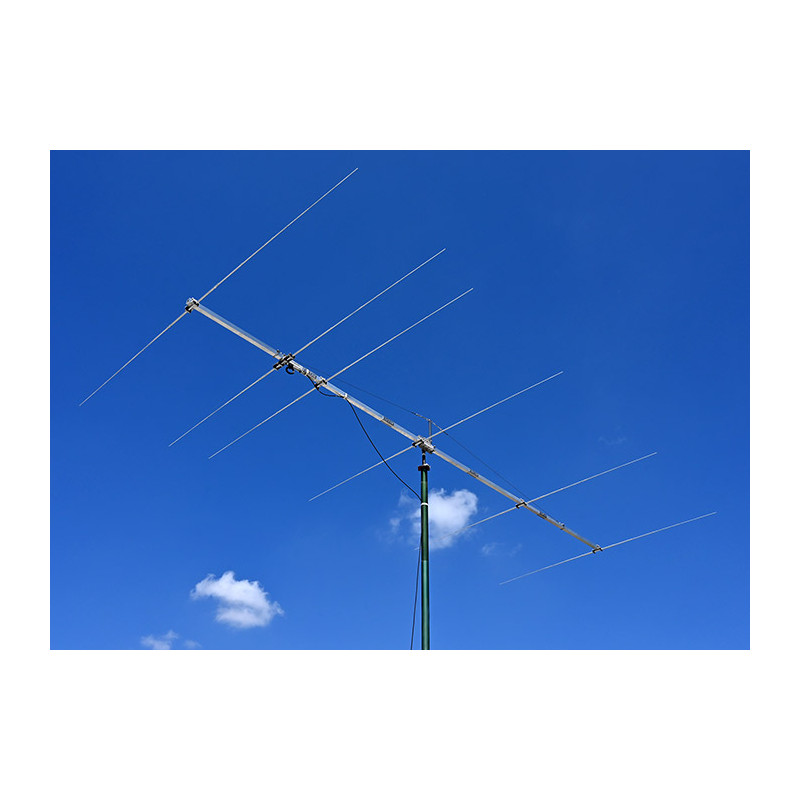

10/11 meter 6 elm HeavyDuty Antenna PA28-6-9BHD

Den bedste heavy duty yagi der bliver lavet.

Bom længde 9.3m, 60x60mm bom, Gain 11,0dBI/8,85 dBd i 60x60mm bom, high power balun.

Alle beslag er i rustfri.

Super Heavy Duty med super performance.

Du kan ikke sammenligne antenner og priser med de billige retningsantenner på markedet.

Du kan justere antennen 0.5 Mhz ned så du kan køre DX i 11m båndet.

Electrical specifications of HF 10m 6elements Yagi Antenna 10m6HD

Frequency Range: 28 – 29 MHz
Frequency Range for SWR less than 1.5: 27.2 – 29.2 MHz (excellent gain for CB band)
Free Space Forward Gain: 11 dBi
Forward Gain 20m AGL: 16.5 dBi
Front-to-Back Ratio: 26 dB
-3 dB Horizontal Beamwidth: 51.15°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohm
SWR Across Entire Band: < 1.2
Maximum Power Input: 2500W (more by order)

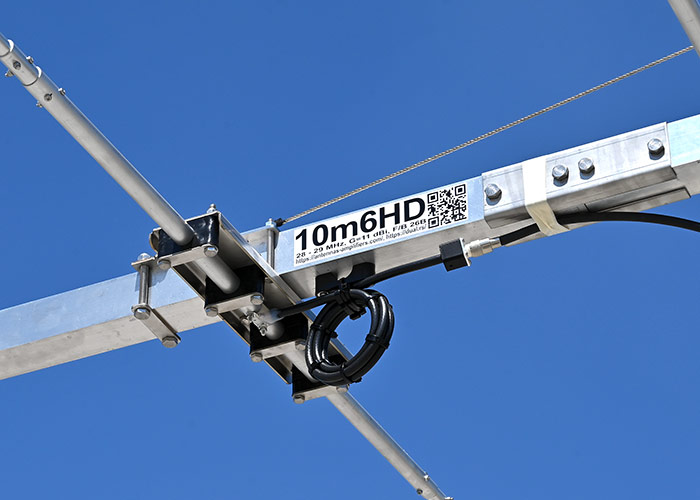

Matching Method: Direct feed through common mode choke (current balun)
Connector: Silver plated Teflon SO239 or 7/16 DIN by request

Number of Elements: 6
Elements Diameter: Tapered elements starting diameter 25 mm to 8 mm
Longest Element: 5.7 m
Element Mounting Position: Below the boom
Balun and Connector: Included
Boom Length: 9.3 meter
Boom Size: 60 x 60 mm
Turning radius: 5.5m
Number of Boom Pieces: 5

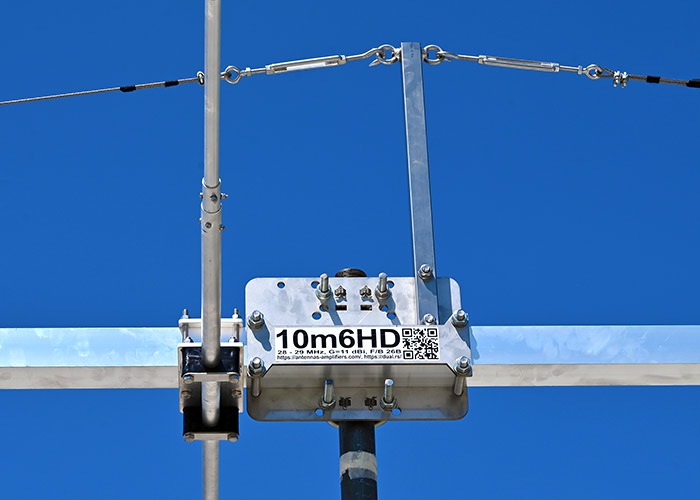

Guy rope support: Yes, Included Stainless Steel AISI 316L rope 4 mm
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: 2 x M12 Stainless Steel AISI 316L (A4)
Survival Wind Speed: 150 km/h
Net Weight: 35 kg
Gross Weight: 39.5 kg (Two boxes up to 20kg)
Transportation Length: 2m

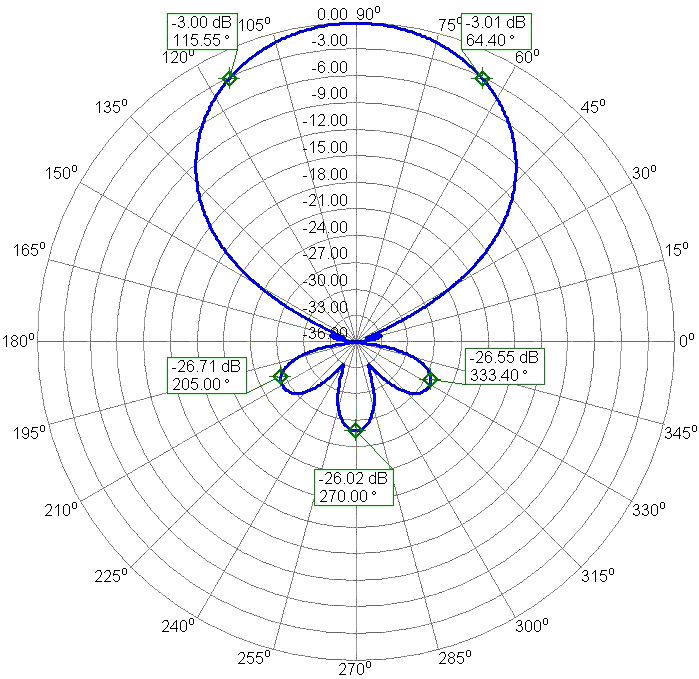

10m6HD Azimuth Radiation Pattern
