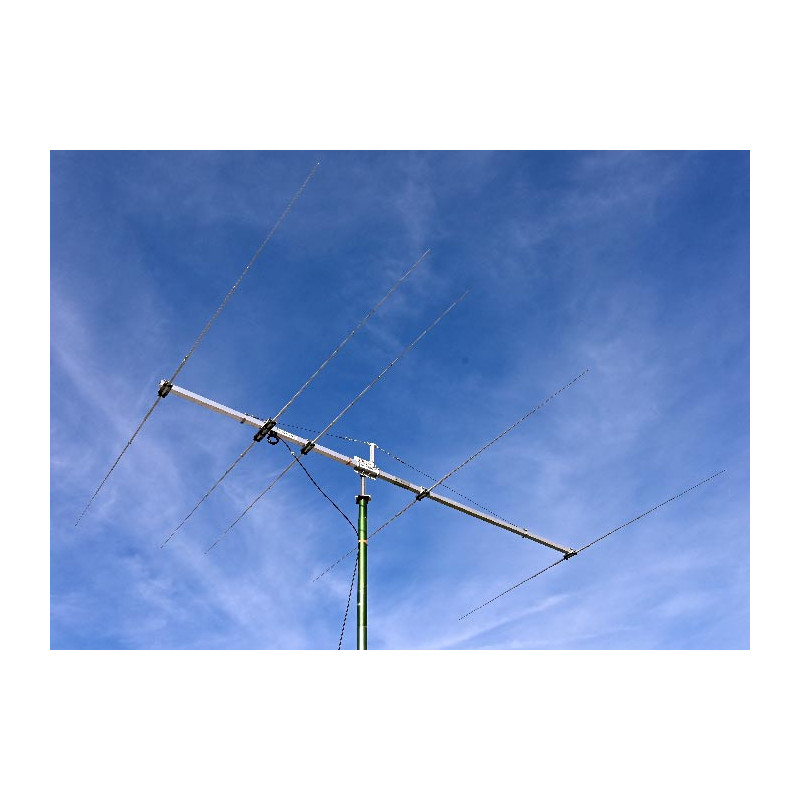

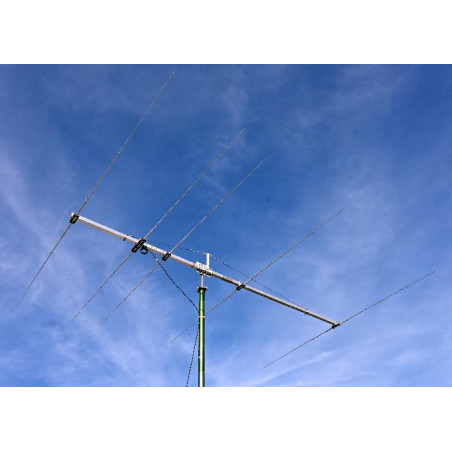

10/11 meter 5 elm HeavyDuty Antenna PA28-5-6BHD

Den bedste heavy duty yagi der bliver lavet.

Bom længde 5.85m i 60x60mm profil.

Alle beslag er i rustfri.

Super Heavy Duty med super performance.

Du kan ikke sammenligne antenner og priser med de billige retningsantenner på markedet.

Du kan justere antennen 0.5 Mhz ned så du kan køre DX i 11m båndet.

(27) 28 MHz – 29 MHz Strong HF antenna for High Wind Locations 5 elements PA28-5-6BHD

Electrical Specifications

Frequency Range: 28 – 29 MHz
Free Space Forward Gain: 9.7 dBi
Forward Gain 20m AGL: 15.3 dBi
Front-to-Back Ratio: 27 dB
3 dB Horizontal Beamwidth: 56.6°
Nominal Input Impedance: 50 Ohm
Maximum SWR at any freq: 1.5
Maximum Power Input: More than 1.5 kW
Matching Method: Direct feedthrough current balun
Connector: SO239 Silver Plated

Mechanical Specifications

Boom length: 5.85 m
Boom Diameter: 60 x 60 mm
Longest element: 5.8 m
No. of elements: 5
Turning radius: 3.9 m
Mounting Mast Diameter: 43 – 70 mm
Survival Wind Speed: 150 km/h
Weight: 40 kg

28 MHz Heavy Duty Yagi Antenna 5 elements PA28-5-6BHD Elements Dipole and Balun View

On antenna Silver plated Teflon SO239 connector.

Maximum power depends only on the used RG213 cable and connector.
