Nooelec SAWbird+ ADS-B preamp+filter

 About this item

    This product is designed to massively increase the signal strength (SNR) of aircraft tracking compared to competing products. Significantly exceeds all available, cost-effective ADS-B amplifiers and filters!
    SAWbird+ ADS-B increases SNR and therefore signal range by providing an industry's lowest noise figure (0.9dB or less) and significant gain (34dB or more) for both ADS-B and UAT applications

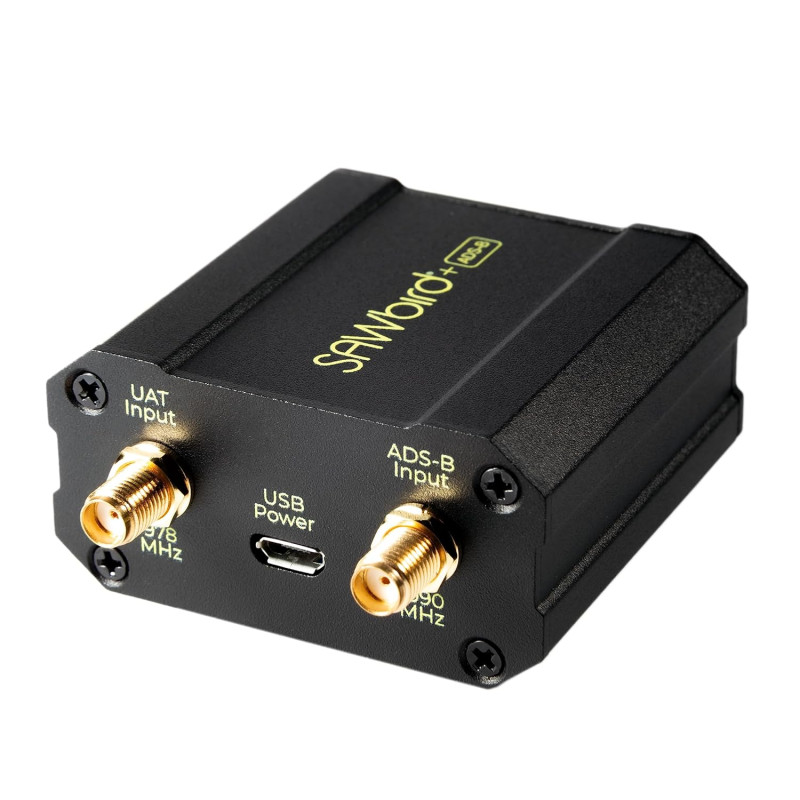

    Your purchase includes a fully assembled SAWbird+ ADS-B module preinstalled in a beautiful black custom aluminum housing, two SMA male plug adapters and a micro USB DC barrel plug adapter cable
    Both sides of the unit provide a Bias T power supply option (3 to 5V DC and 140mA or higher current availability). Alternatively, a micro USB port is available to provide an external power supply when the Bias T power supply is unavailable or unsuitable. Exceptional out-of-band suppression values of +85 dB for cleaner signals
    Proudly made in North America to ensure exceptional quality and reliability. With a generous 2-year warranty, you can rest assured. Further information can be found on the product page or in the data sheet: https://www.nooelec.com/datasheets/100847

• Product Dimensions ‏ : ‎ 3.2 x 2.1 x 1.2 cm; 84 Grams
