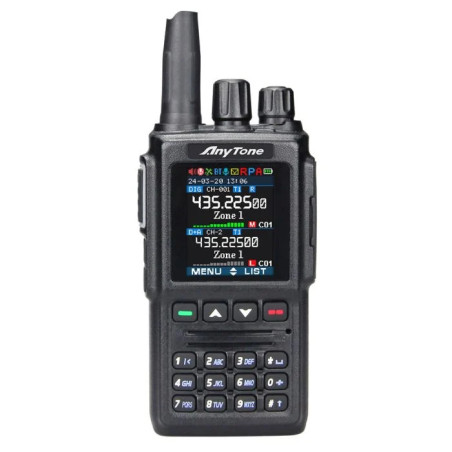

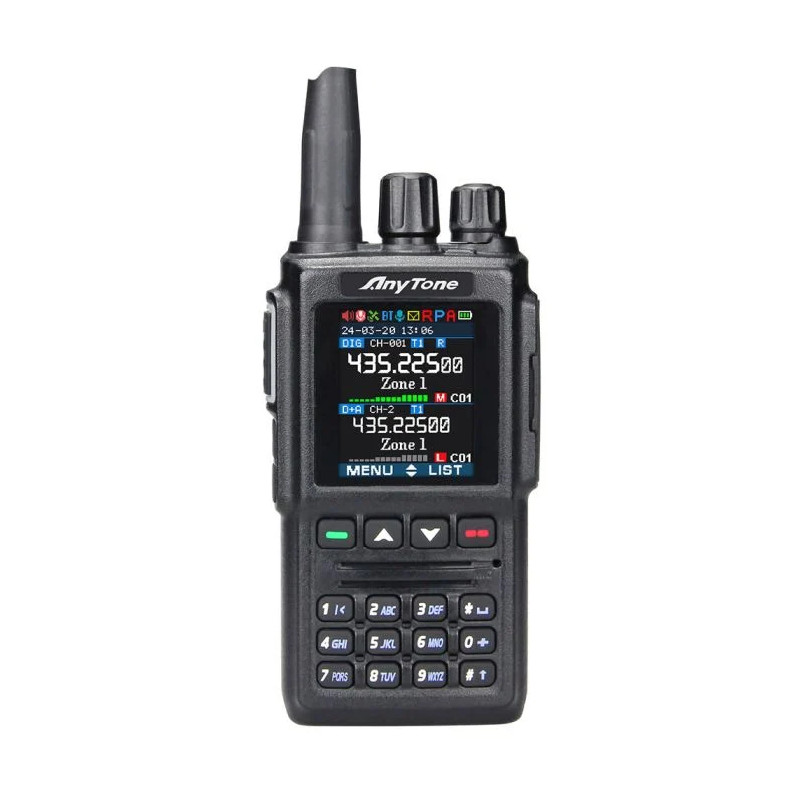

Anytone AT-D168UV DMR

Anytone AT-D168UV is an entry level DMR radio without installing GPS and Bluetooth, it is smaller in size and less expensive. D168UV mobile radio will come with two antennas ( 1 short and 1 long), and two batteries ( 1800mAh and 2500mAh). Dual-Band VHF/UHF Digital DMR Handheld Radio -AES256, and USB Type-C Battery. Anytone AT-D168UV DMR Mobile Radio is a device for wireless communication, which is widely used in various occasions, such as emergency services, commercial communications and personal use. It has two antennas (short antenna and long antenna) and two batteries (1800mAh and 2500mAh).

Dual antenna design: Through the combination of short antenna and long antenna, users can choose the appropriate antenna according to actual needs to optimize signal quality and communication distance.

Battery selection: Users can choose batteries of different capacities according to the needs of usage time to ensure smooth communication in various environments.

Features

    True-2-slot: Yes
    Display: Yes, LCD color display
    Bandwidth: 2.5 - 25 kHz
    VOX function: Yes
    DTMF: Yes


Electrical data

    Frequency step: 12.5 kHz / 25 kHz /
    Channels: 4000 + VFO; 10,000 Talk groups with 500,000 digital contacts
    Wide and narrow bandwidth selection: Yes
    Phase-locked Step: 5 and 6.25 kHz
    Operating temperature: -20℃ to +55℃
    Operating voltage: 7.4 Volt, DC ± 20% / (2100 mAh/ 3100 mAh)

Transmitter

    Power output (Watts): VHF: 1/2.5/5/7 Watts / UHF: 1/2.5/5/6 Watts
    Modulation limit: ± 5.0 kHz @ 25 kHz / ± 2.5 kHz @ 12.5 kHz
    Adjacent channel power: Wide: ≥ 70 dB / Narrow: ≥ 60 dB
    Spurious Emission: Wide: ≤ -36 dB / Narrow: ≤ -36 dB
    Audio distortion: ≤ 5%


Receiver

    Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
    Digital sensitivity: Wide: 0.3 uV/-117.4 dBm (BER 5%) / Narrow: 0.7 uV/-110 dBm (BER 1%)
    Spurious emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
    Spurious rejection: Wide: ≥ 65 dB / Narrow: ≥ 70 dB
    Blocking: 84 db

Mechanical data

    Length: 104 mm
    Height: 36 mm
    Width: 54 mm
    Weight: 293 gram
    Antenna connector: SMA

Inside the box

Transceiver: Yes
Battery: 1800 mAh + 2600 mAh
Charger: Desk charger with AC adapter (QBC-45L - QPS-17)
USB program cable: Yes
Installation manual: English
Belt clip: Yes
Antenna TX-0311 (length 12 cm): Yes
Antenna TX-0313 (length 38 cm): Yes
