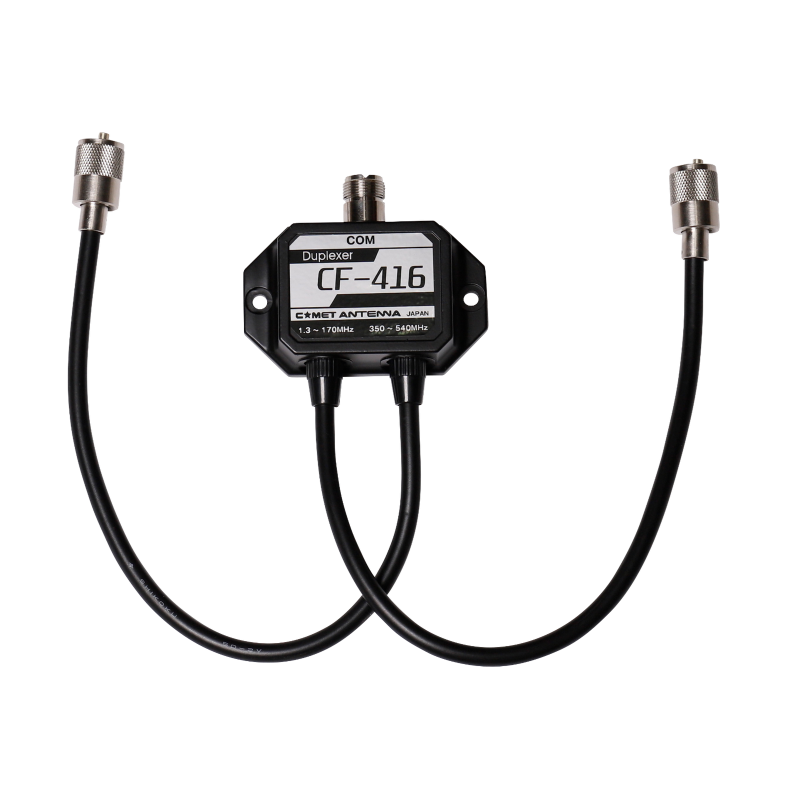

Comet - CF-416B - VHF/UHF

Brand Comet Antenna

Model CF-416B is the duplexer for transmitting/receiving all 2 bands of 144 MHz (included HF to 50 MHz) and 430, 440 MHz at the same time

Description
Product Details

Description

Model CF-416B is the duplexer for transmitting/receiving all 2 bands of 144 MHz (included HF to 50 MHz) and 430, 440 MHz at the same time. Using one, or two CF-416B, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-416B work to prevent of occurrence of TVI on the other hand (isolation of each connectors are over 60 dB). When using CF-416B for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Electrical data

Power peak: 1.3-60 MHz: 1000W (PEP) / 100-170 MHz: 800W (PEP) / 350-540 MHz: 500W (PEP)
VSWR: 1.2 or less
Impedance: 50 Ohm
Insertion loss: 1.3-170 MHz: 0.15 dB or less / 350-540 MHz 0.25 dB or less
Isolation: more than 60 dB

Mechanical data

Connector(s) type in: UHF (PL) female
Connector(s) type out: 1.3-170 MHz: UHF (PL) male / 350-540 MHz: N male /
Length: 66 mm
Height: 26 mm
Width: 90 mm
Weight: 325 gram
