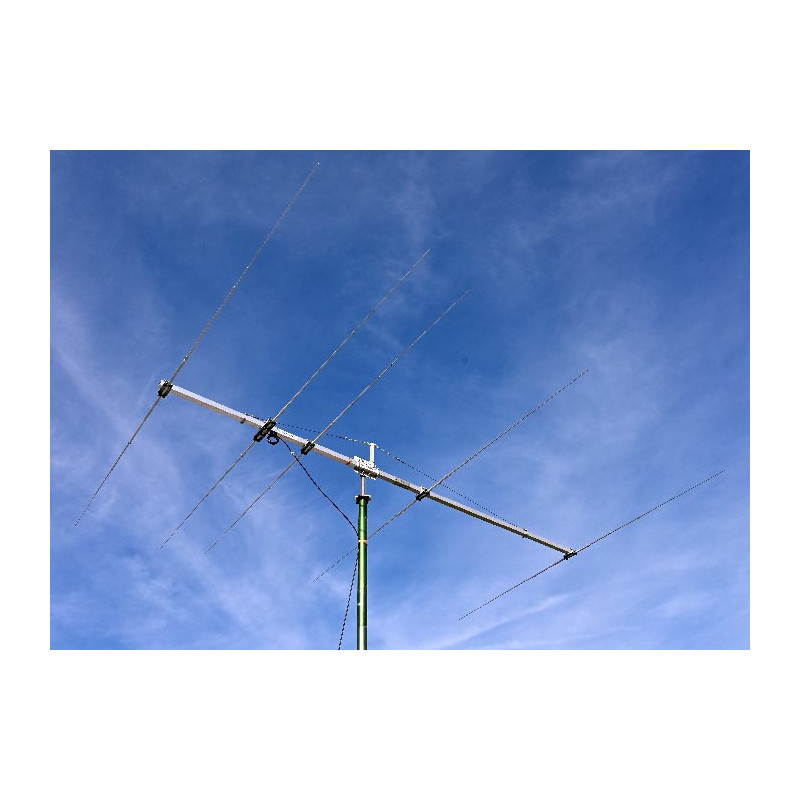

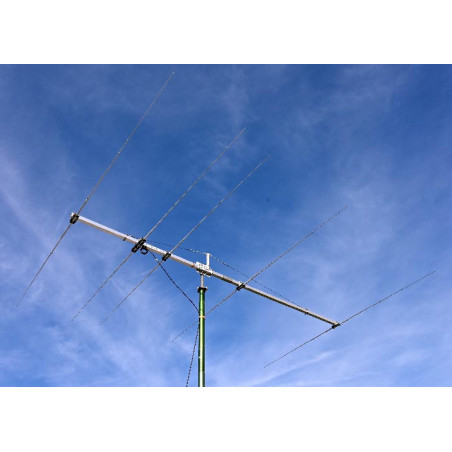

10/11 meter 3 elm HeavyDuty Antenna PA28-5-6BHD
HF 10 meter 28 -29 MHz Heavy Duty Monobander Antenna 3 elements PA28-3-4BHD
Antenna wind survival speed 200 km/h. Direct 50 Ohm feed.
Additional shipping costs! send me an e-mail before ordering to calculate the total costs. Normal tax and duties are included.
Description
HF 10 meter 28 -29 MHz Heavy Duty Monobander Antenna 3 elements PA28-3-4BHD
Antenna wind survival speed 200 km/h. Direct 50 Ohm feed.
Electrical Specifications
Frequency Range: 28 – 29 MHz
Free Space Forward Gain: 7.6 dBi
Forward Gain 20m AGL: 13.3 dBi
Front-to-Back Ratio: 25 dB
3 dB Horizontal Beamwidth: 65°
Nominal Input Impedance: 50 Ohm
Maximum SWR at any freq: 1.5
Maximum Power Input: More than 1.5 kW
Matching Method: Direct feed through a current balun.
Connector: SO239
Mechanical Specifications
Boom length: 4 m
Boom Diameter: 50 mm
Longest element: 5.4 m
No. of elements: 3
Turning radius: 3.4 m
Mounting Mast Diameter: 43 – 70 mm
Survival Wind Speed: 150 km/h
Weight: 28 kg
