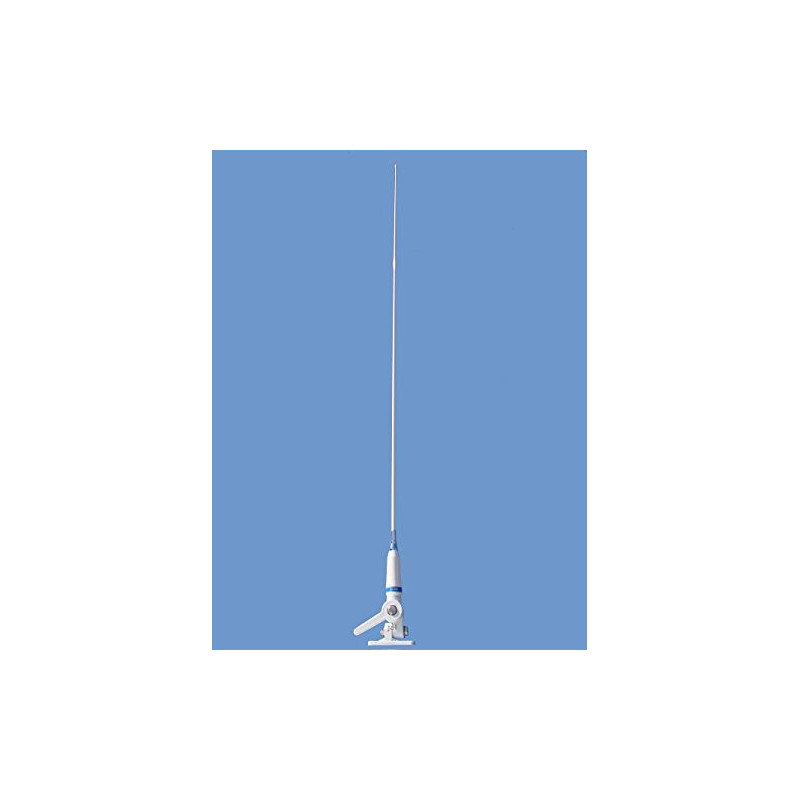

156 - 163 MHz marine antenna working on VHF marine band without Ground Plane. The fiberglass radiator allow a perfect protection against the worst sea weather and is DC-grounded in order to avoid stray R.F. currents and their discharges. All its metallic components are made of chromed brass. It is supplied with M8" nylon marine mount and 5 meters white coaxial cable. In the mentioned range of frequencies adjustments are not required.
Electrical type: 1/2 λ base loaded
Gain: 0 dBd, 2.15 dBi
VSWR: 158 ≤ 1.2
Bandwidth: 154 - 162.5 MHz ≤ 2.0
Maximum continuous power: 100 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 5 meter / White RG 58
Materials: Chromed brass, Fiberglass, Nylon
Height: 1100 mm
Weight: 680 gram
Mounting type: Deck mount
Antenna: Yes
Radio connector: Not included, optional
Mounting parts: Yes
Antenna cable: Yes
Installation manual: English
