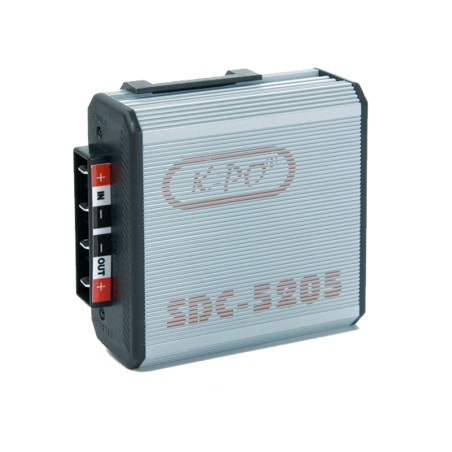

SDC 5205 - 18-38V to 13.8V DC

The SDC-5205 is a voltage reducer from 18-38V to 13.8V DC power and has an continuous output 5A and a peak of 7A. Connection is via screw terminals (no cable included). The Reducer is suitable for sources such as Land Rovers, commercial vehicles, recreation vehicles, farming equipment and other diesel power vehicles. It is implemented by using Switching Mode Power Supply technology to make it generate less heat and hence higher efficiency. Advanced design, quality production control and sturdy construction assure continue stability and reliability.

Electrical data
Input power: 18 - 38 Volt
Output voltage: 13.8 Volt
Continuous output current: 5 A
Maximum peak current: 7 A
No load current: <20 mA
Ripple & noise (p-p): <100 mV
Ripple & noise (r.m.s.): <10 mV
Load regulation: <50 mV
Line regulation: <50 mV
Efficiency: >89%
Protections: Output over-voltage protection, loss of earth protection, self reset protection, reverse polarity protection, overload protection, short circuit protection
Input & output connection type: Push-on flat blade connectors
Cooling system: Natural (no fan)
Max operating temperature: 50 °C
Fuse: 8 A
Approvals: CE(RED), EN61000-6-3, EN61000-6-1
Indications: Green LED-OPERATE and Red LED-FAULT
