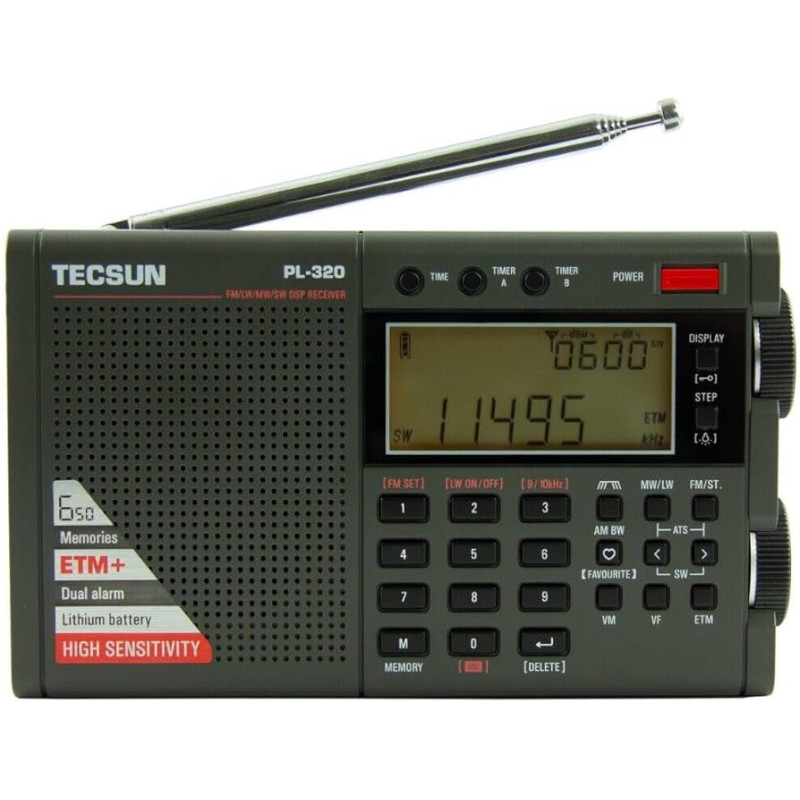

Tecsun PL-320

Features

9/10 KHz step MW: Yes

Signal indicator: Yes

Scan function: Yes

Manual tuning: Yes

Auto tuning storage (ATS): Yes

Clock function: Yes

Alarm function: Yes

Snooze function: Yes

Battery indicator: Yes

Temperarture meter: Yes

Sleep timer: Yes

LCD backlight: Yes

Earphone socket 3.5 mm: Yes

External antenna socket: Yes

Keylock function: Yes

Memory channels: LW / FM: 100 for each | MW: 150 | SW: 300

Telescopic antenna: Yes

Power source: Battery pack (included)

USB-C socket: Yes

Volume: Yes

Enhanced Tuning Mode (ETM+): Yes

Favorite station: Yes

Elektrical data

IF frequency: AM: 45 kHz / FM 128 kHz

FM stereo crosstalk (headphone output): 35 dB

Speaker: 8 Ohm / 0.25 Watt

Stereo headphone impedance: 32 - 150 Ohm

Maximum output power: ± 200 mW

Quiescent current: FM/MW/LW: <25 mA / SW: <45 mA

Standby current: < 90 uA

Frequency range

FM: 64 - 108 MHz / 76 - 108 MHz / 87 - 108 MHz / 88 - 108 MHz

MW: 520 - 1710 kHz (10 kHz) / 522 - 1620 kHz (9 kHz)

LW: 153 - 513 kHz

SW: 1711 - 29999 kHz

Frequency steps

FM: 100 kHz / 10 kHz

MW (520-1710 kHz): 10 kHz / 1 kHz

MW (522-1620 kHz): 9 kHz / 1 kHz

SW: 5 kHz / 1 kHz

LW: 9 kHz / 1 kHz

Noise limit sensitivity

FM (S/N = 26 dB): < 3 µV

LW (S/N = 26 dB): < 10 mV/m

MW (S/N = 26 dB): < 1 mV/m

SW (S/N = 26 dB): < 20 µV

Selectivity

FM: > 60 dB

MW: > 60 dB

LW: > 60 dB

SW: > 60 dB

Mechanical data

Length: 26 mm

Height: 85 mm

Width: 139 mm

Weight: 210 gram

Color: Grey

Inside the box

Receiver: Yes

USB-C charger: Yes

Carry bag: Yes

Battery pack: Yes, 1000 mAh BL-5C li-ion battery pack

Earbuds: Yes

Keycord: Yes

User manual: English
