A “Bias-Tee” also known as a “DC Inserter” is a simple way to feed DC power through coaxial cable to the remote device such as a pre-amplifier and – or transmit/receive relays via the coaxial cable.
The main task is to inject DC into or extract DC current from the coaxial cable, leaving the RF signal undisturbed.
A bias tee is a passive RF circuit consisting of capacitors and inductors. Act as a diplexer by combining DC and RF signals onto a common port RF+DC.
Frequency Range: 400 – 500 MHz
Maximum Power at SWR 1:1 1200W
Insertion loss: 0.01dB
Input Return Loss: -35 dB
Isolation RF port to DC port: 80 dB
DC resistance from DC to RF: 0.15 Ω
Supply Voltage: 30V
Supply Current: 1A
Connectors “N”
Permanent damage may occur if any of these limits are exceeded.
70 cm 1200 W Ultimate High Power Bias-Tee 430-450 MHz Measured extreme high DC-RF isolation 80 dB that minimizes RF signal leakage and interference with other devices.
70 cm Bias Tee 430 – 450 MHz High Power 1200 W Measured Super Low Loss Insertion Loss and excellent Return Loss
The recommended position of 70 cm outdoor Bias-Tee is at the end of the coaxial cable to pass DC power to the remote device.
Inject DC into Coaxial cable.
Extracts DC from Coaxial cable.

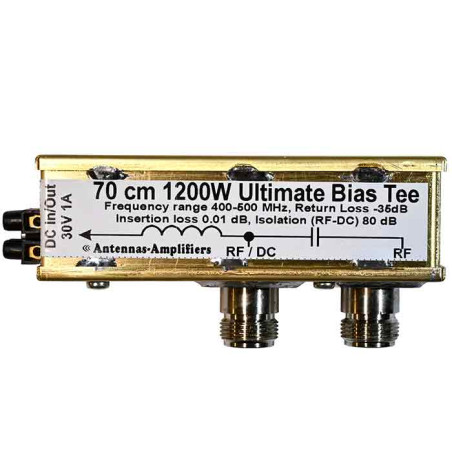

400 -500 MHz 70 cm 1200 W Ultimate Bias Tee Outdoor Mounting appearance
