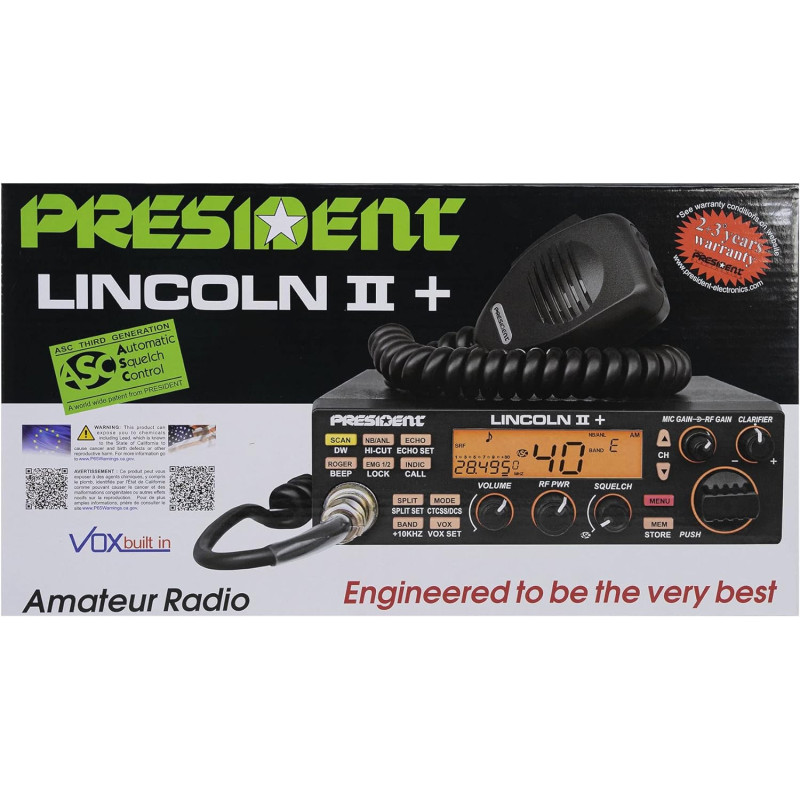

President Lincoln II+ (V3)

Features

Modulation: AM / FM / LSB / USB / SSB / CW

Output power: AM: 50 Watt / FM: 35 Watt / SSB: 35 Watt (PEP) / CW: 12 Watt

Display type: LCD display

Display colors: Green / Orange / Blue

Export version: Yes

VOX Function: Yes

Noise blanker: Yes

Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /

Emergency channel: Yes

Keypad lock: Yes

Hi/Lo power: Yes

Scan function: Yes

Memory channels: Yes

Quick channel selection: Yes

External speaker socket: Yes

External S-meter socket: Yes

External PA socket: Yes

S-meter: Yes

MIC gain: Yes

RF gain: Yes

TOT (time out timer): Yes

Dual watch: Yes

Roger Beep: Yes

External VOX socket: Yes

Clarifier: Yes

Electrical data

Voltage: 13,8 Volt

Transmitter

Audio frequency response: 300 Hz - 3 kHz

Microphone sensitivity: 3.0 mV

Frequency allowance: ± 300 Hz

Transmission interference: inferior to 4 nW (- 50 dBm)

Emitted power in the adjacent channel: inferior a 20 μW

Modulated signal distortion: 2.0 %

Drain: 13.2 Volt: <6.0 A

Receiver

AM sensitivity: 0,7 µV - 113 dBm

FM sensitivity: 0,35 µV - 116 dBm

Frequency response: 300 Hz - 3 kHz

Adjacent channel selectivity: 60 dB

Maximum audio power: 3 Watt

SSB sensitivity: 0,28 µV - 118 dBm

Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm

Frequency image rejection rate: 60 dB

Intermediate image rejection rate: 70 dB

Drain: min. 400 mA / max. 600 mA

Mechanical data

Length: 250 mm

Height: 52 mm

Width: 170 mm

Weight: 1400 gram

Antenna connector: UHF (PL) female (SO-239)

Mike connector: 6 pin connector

Inside the box

Transceiver: 1 pcs

Microphone: 1 pcs

Fixing screws: 1 set

Mounting bracket: 1 pcs

Power lead: 1 pcs

User Manual: English, Spanish, French, Polish
