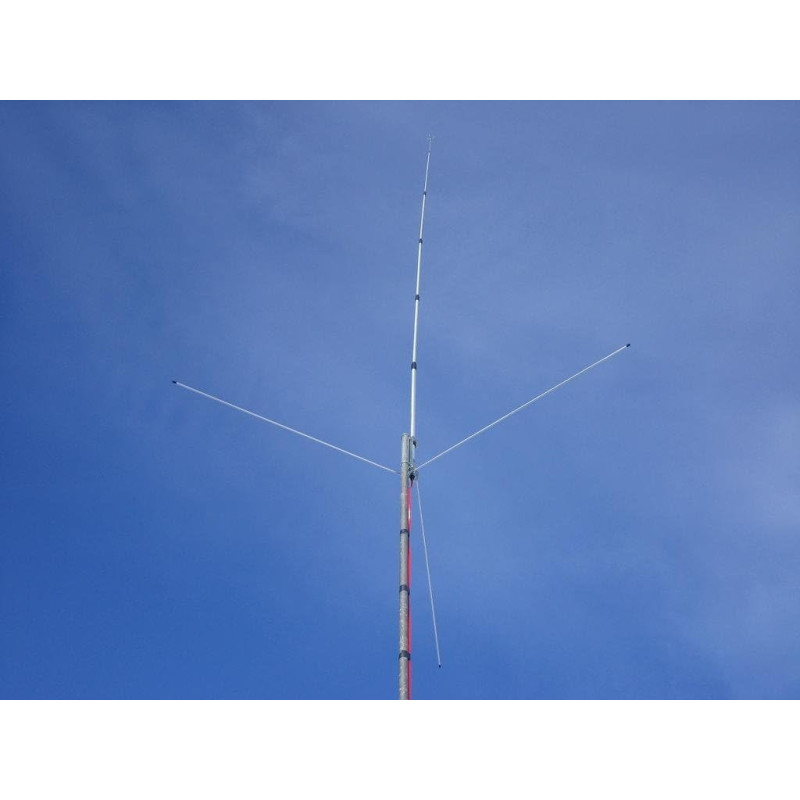

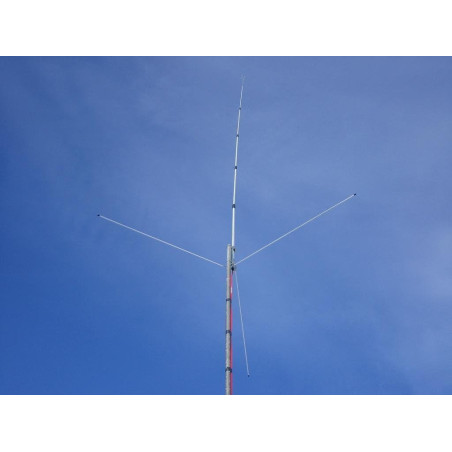

Sirio - GPE 5/8 Static
Economic version of the Sirio GPE 5/8. Same performances but without the anti-static top and without the plastic sleeves. Comes in a PE poly-bag packaging instead of a carton box.
Frequency range: 26.4 - 29.0 MHz tunable
Description
Electrical data
Electrical type: 5/8 λ ground plane
Gain: 1.2 dBd, 3.35 dBi
VSWR: ≤ 1.3
Bandwidth: 1600 kHz ≤ 2.0
Maximum continuous power: 250 Watts (CW)
Power peak: 750 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Feed system: Transformer DC-ground / base
Mechanical data
Materials: Aluminium, copper, galvanized steel, nylon
Mast Ø: 35 - 42 mm
Max wind resistance: 130 km/h
Height: 5950 mm
Weight: 2500 gram
Mounting type: On mast
Antenna connector: UHF-female
Radial length: 1320 mm
Product Details
Data sheet
- Band
- 10/11m
