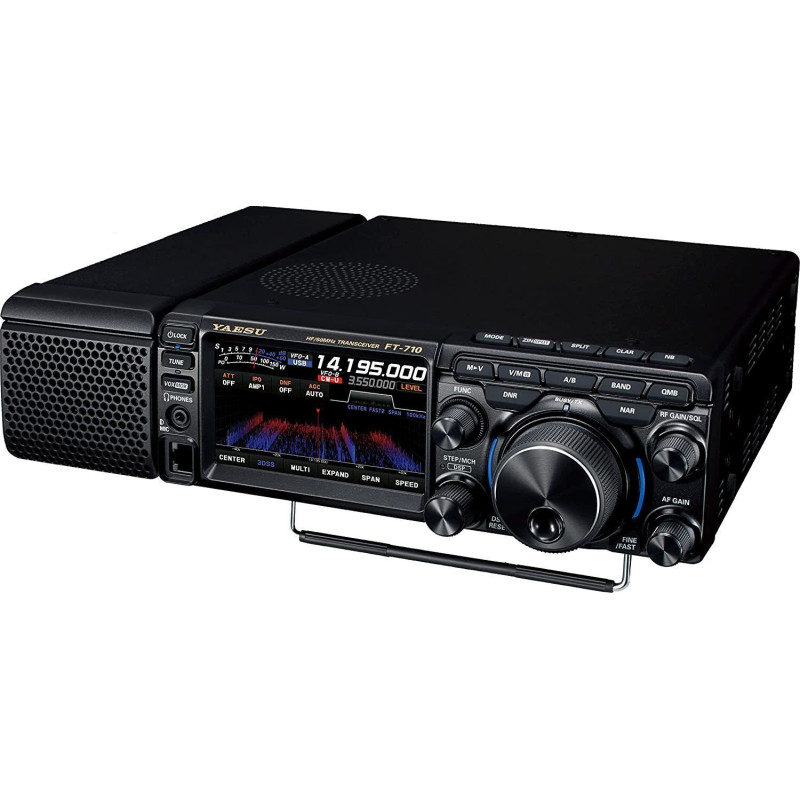

Yaesu - FT-710 AESS

SDR circuit configuration emphasizes Receiving Performance

The FT-710 is equipped with the same high resolution A/D converter and FPGA used in Yaesu high end SDR transceivers. The twin A/D converter circuit configuration performs digital conversion processing using two A/D converters. The digital signal is combined by the FPGA to reduce overload and overflow of the A/D converters and improve blocking characteristics. In addition, random noise is added to the analog signal before digital conversion, distortion is suppressed by minimizing the quantization error during digital conversion by the A/D converter and a dithering technology that improves IM (Intermodulation) characteristics is adopted. The overall performance of the SDR receiving circuit is superb.

AESS produces high fidelity audio

AESS (Acoustic Enhancement Speaker System) is generated by digital processing. The Mid-Low frequency enhancement speaker and the side speaker are combined to create the dramatic overall audio frequency response and high fidelity audio output.

Quick Memory Bank (QMB) function

The QMB function can be used to store dedicated memory channels (Quick Memory Bank). With one touch a memory can easily be recalled. The Quick Memory Bank stores the freq uency, the mode, and also the transmit/receive settings, filter and other parameters, so operating may begin quickly in the best condition without resetting, when switching bands. Memory settings can be easily checked by listing the memory contents on the display. (up to 10 memory channels are available).

Front panel design emphasizes operating efficiency and comfort.

Compact transceiver, with a large 4.3 inch full color TFT with touch panel display provides intuitive operation and outstanding visibility. Primary operating functions are arranged on the front and centered above the VFO dial for operating efficiency and instant access.

Features

Display: 4.3 inch Full-Color TFT Display with Touch Panel

Bandwidth: SSB: 3 kHz / CW: 500 Hz / AM: 6 kHz / FM: 16 kHz

VOX function: Yes

Mode of emission: A1A (CW) / A3E (AM) / J3E (SSB) / F3E (FM)

Quick Memory Bank (QMB): Yes, The current operation status can be stored in a dedicated memory channel (QMB: Quick Memory Bank) with one touch

Scope: The Scope function provides a real time spectrum display of the band conditions.

Intercept Point Optimization (IPO): Yes, The IPO function can establish the gain of the RF amplifier section to accommodate the connected antenna and the received signal conditions

IF Noise Blanker (NB): Yes, The FT-710 includes an effective IF Noise Blanker, which can significantly reduce noise caused by automotive ignition systems

IF SHIFT Operation: Yes, IF Shift permits moving the digital filter passband higher or lower, without changing the pitch of the incoming signal

Automatic Gain Control (AGC): Yes, The AGC system is designed to help compensate for fading and other propagation effect

Digital NOTCH Filter (DNF): Yes, The Digital NOTCH Filter (DNF) is an effective beat-canceling filter that can null out a number of interfering beat notes inside the receiver passband

IF NOTCH Filter (NOTCH): Yes, The IF NOTCH filter is a highly effective system that allows you to slice out an interfering beat note or other carrier signal from inside the receiver passband

AF / RF gain / Squelch: Yes

Automatic Antenna Tuner (ATU): Yes, The Automatic Antenna Tuner is built into each FT-710. The ATU is designed to ensure that a 50 Ω antenna impedance load is presented to the final amplifier stage of transmitter

Parametric Microphone Equalizer: Yes, The FT-710 includes a unique Three-Band Parametric Microphone Equalizer that provides precise, independent control over the low, mid and treble ranges in the voice waveform.

Time-Out Timer (TOT): Yes, The “Time-Out Timer” (TOT) shuts the transmitter OFF after continuously transmitting for the programmed time

Band Stack: Yes, The Yaesu FT-710 utilizes a triple band-stack VFO selection technique that permits storing of up to three favorite frequencies and modes onto each band VFO register.

MicroSD card slot: Yes

External phone jack: Connect headphones to this standard φ3.5 stereo jack

External GND socket: Yes

External speaker socket: Yes

External REM/ALC socket: Yes

External KEY jack: Yes

External RTTY/DATA jack: Yes

External USB jack: Yes

External USB socket: Yes

External display socket: Yes

Less

Electrical data

Wide and narrow bandwidth selection: Yes

Operating temperature: 0℃ to +50℃

Frequency step SSB/CW/AM: 1 Hz / 5 Hz / 10 Hz / 20 Hz

Frequency step FM/C4FM: 100 Hz

Frequency stability: ±0.5 PPM

Operating voltage: 13.8 Volt ± 15% (Negative Ground)

Current consumption: RX (no signal): 1.8 A / RX (signal present): 2.2 A / TX (100W): 21 A

Less

Transmitter

Power output (Watts): SSB, CW, FM: 5-100 Watts / AM: 5-25 Watts

Modulation type: J3E / A3E / F3E

Maximum deviation: Wide:±5.0 kHz / Narrow: ±2.5 kHz

Harmonic Radiation 1.8 - 29.7 MHz: Better than -50 dB

Harmonic Radiation 50 - 54 MHz: Better than -63 dB

Antenna impedance (Antenna tuner 'OFF'): 50 Ω (unbalanced)

Antenna impedance (Antenna tuner 'ON') 1.8-29.7 MHz: 16.7-150 Ω (unbalanced)

Antenna impedance (Antenna tuner 'ON') 50 MHz: 25 - 100 Ω (unbalanced)

Microphone impedance: 600 Ω (200 - 10k Ω)

SSB Carrier Suppresion: At least 60 dB below peak output

Undesired Sideband Suppression: At least 60 dB below peak output

Audio response SSB: Not more than -6 dB from 300 - 2700 Hz

Less

Receiver

Sensitivity 1.8-30 MHz SSB/CW: 0.16 μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)

Sensitivity 50-54 MHz SSB/CW: 0.125 μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)

Sensitivity 70-70.5 MHz SSB/CW: 0.16 μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)

Sensitivity 0.5-1.8 MHz AM: 6.3 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)

Sensitivity 1.8-30 MHz AM: 2.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)

Sensitivity 50-54 MHz AM: 1.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)

Sensitivity 70-70.5 MHz AM: 2.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)

Sensitivity 1.8-30 MHz FM: 0.25 μV typ for 12 dB SINAD (AMP2 “ON”) (12 kHz)

Sensitivity 50-54 MHz FM: 0.2 μV typ for 12 dB SINAD (AMP2 “ON”) (12 kHz)

Sensitivity 70-70.5 MHz FM: 0.25 μV typ for 12 dB SINAD (AMP2 “ON”) (12 kHz)

Intermediate frequency: SSB/CW, 18 kHz, AM/FM: 24 kHz

Selectivity (-6 dB/-60 dB) CW: 0.5 kHz or better / 0.75 kHz or less

Selectivity (-6 dB/-60 dB) SSB: 2.4 kHz or better / 3.6 kHz or less

Selectivity (-6 dB/-60 dB) AM: 6.0 kHz or better / 15 kHz or less

Selectivity (-6 dB/-60 dB) FM: 12 kHz or better / 25 kHz or less

Receiving system: Direct Sampling superheterodyne

Strength of secondary radio waves: ≤4 nW

Audio power output: 2.5W (THD10%, 13.8 V)

Audio output impedance: 4 - 16 Ω (Nominal: 4 Ω)

Image rejection 1.8-28 MHz: 70 dB or better

Image rejection 50 MHz: 60 dB or better

Less

Mechanical data

Length: 247 mm

Height: 80 mm

Width: 239 mm

Weight: 4500 gram

Antenna connector: UHF (PL) female (SO-239)

Microphone connector: RJ45

Less

Inside the box

Transceiver: Yes

DC power cable: Yes

Installation manual: English

External speaker: Yes, SP-40 External speaker

Microphone: Yes, SSM-75E Microphone

Fuse: Yes, Spare fuse (25 A)
