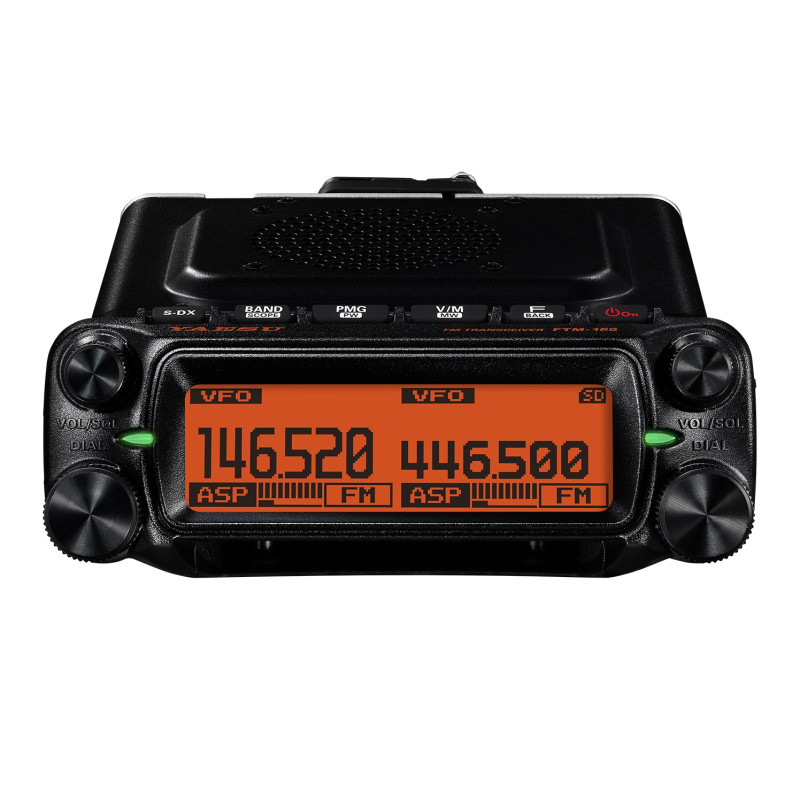

Yaesu - FTM-150E ASP

The Yaesu FTM-150E ASP is a mobile transceiver that provides true dual band operation with two different receivers on different bands or within the same band (V+V, U+U, V+U, U+V).  Full Dot-Matrix display is graphically visible and provides a clear and crisp view of the radio operating status.  Front panel is detachable, and by attaching the optional swing-head – SJMK-500, flexible angle adjustment is possible to accommodate easy mobile operation.

The power output is 55W on VHF and 50W on UHF (55W / 50W, 25W, 5W is selectable).  Heavy Duty Heat Sink with FACC (Funnel Air Convection Conductor) ensures stable and reliable transmit power.

A front speaker is furnished inside the control-head.  The front speaker, in combination with the main body speaker, provides a total of 6W high quality audio (3W: Front Speaker / 3W: Main Body Speaker).  Volume level of the main body speaker is adjustable (0 – 100%) relative to the front panel speaker for users’ preference.

The Super-DX function increases the receiver sensitivity and improves weak signal reception.  The new ASP: Audio Digital Signal Processing Unit is also activated when the Super-DX key is pressed. The Super-DX with the ASP ensures reliable audio quality for weak signals and expands the communication range.
FEATURES

– PMG (Primary Memory Group)
Up to 5 VFO or Memory Channel frequencies may be assigned to the PMG (Primary Memory Group). The reception status of the PMG channels is displayed in real time with a bar graph in the PMG screen.
The AUTO or MANUAL mode is switchable by pressing and holding the Main VFO knob during PMG operation. The AUTO mode simultaneously shows up to two channels when signals are received.  Transmit is automatically moved to the received channel.
In the MANUAL mode, transmit and receive stays on the manually selected channel. The signal received on the other channel is shown on the screen and the audio can be heard.

GENERAL:

    Frequency range: TX: 144-146MHz / 430-440MHz, RX: 108-137MHz (air band) / 174-400MHz (VHF-UHF band)
    Mode of emission: F2D, F3E
    Frequency stability: ± 2.5ppm (-20°C TO +60°C)
    Input impedance: 50Ω
    Power supply: 13.8v. DC
    Current consumption (approx.): 0.5A (reception), 11A (55W TX, 144MHz) / 10A (50W TX, 430MHz)
    Operating temperature: -20°C TO +60°C
    Dimensions: 139 x 42 x 133mm.
    Weight: 1.Kg.

TRANSMITTER:

    RF power output: 55W (144MHz) / 50W (430MHz) / 25W / 5W
    Modulation type: F2D, F3E
    Maximum deviation: ±5KHz
    Spurious emission: <60dB
    Microphone impedance: 2KΩ
    Data jack impedance: 10KΩ

RECEIVER:

    Circuit type: Double conversion super heterodyne
    Intermediate frequency: 1st Main band: 56.75MHz / 1st Subband: 55.85MHz / 2nd Main band, subband: 450KHz
    Selectivity (-6dB/-60dB): NFM, AM 12KHz /30KHz
    AF output: Front speaker 3w (8Ω, THD 10%, 13.8v) / internal speaker (8Ω, THD 10%, 13.8v) / external speaker (8Ω, THD 10%, 13.8v)
    AF  output impedance: 8Ω
    Strength of secondary radio waves: <4nW
