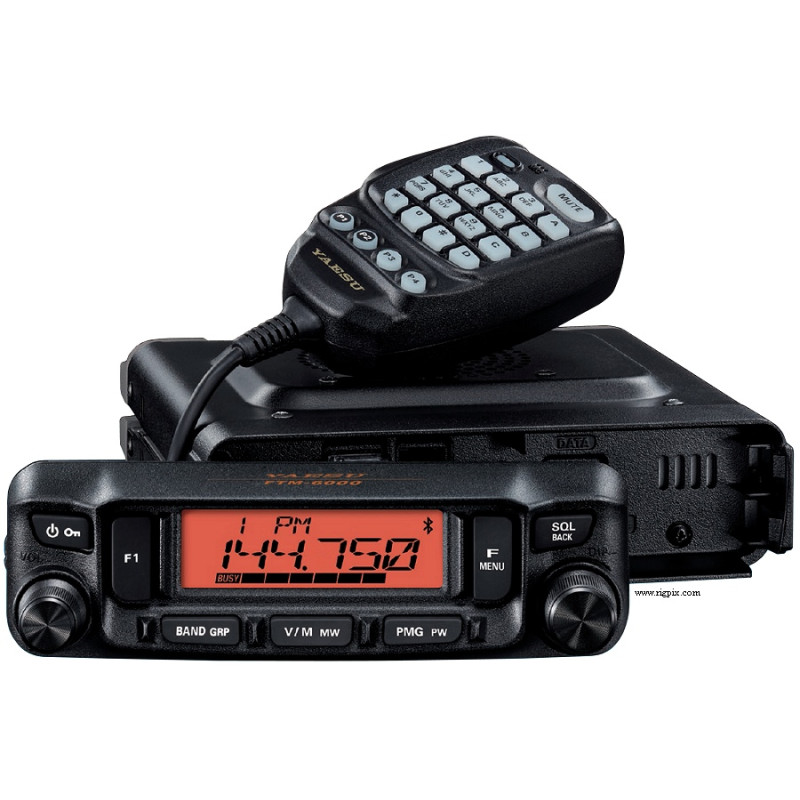

FTM-6000E – 50W VHF/UHF Dual Band FMFTM-6000R – 50W VHF/UHF Dual Band FM Mobile Transceiver.

The Yaesu FTM-6000E is an 50W VHF/UHF Dual Band FM Mobile Transceiver.

Easy to Operate-III (E2O-III)

The new FTM-6000E is a basic feature packed mobile transceiver employing a new User Operating Interface - E2O-III (Easy to Operate – III). E2O-III provides three (3) user-intuitive operating modes to assign functions and settings: (1) The most frequently used function can be registered to the “F1” key and then recalled with a single touch of the “F1” key. (2) Other frequently used functions can be assigned to a Function List and then recalled by simply pressing the “F Menu” key and rotating the dial. (3) All functions and items other than those registered to “Most frequently” or “Other frequently’, are selectable by pressing and holding the “F Menu” key and rotating the dial Up to 5 channels can be registered in PMG (Primary Memory Group). Frequently used PMG frequencies can be shown in an easy-to- distinguish display just by pressing the “PMG” key.

Stable 50 Watt Output

The FTM-6000E provides stable and reliable 50W RF power output. The FTM-6000E is also equipped with a heavy-duty heat sink that includes our exclusive FACC (Funnel Air-Convection Conductor – Wind Tunnel).

Bluetooth support

The FTM-6000E supports optional Bluetooth® wireless operation using the SSM-BT10 Headset or a commercially available Bluetooth® headset.

Clear audio

The speaker delivers 3W of clear and crisp receive audio which has been specifically tuned for radio communication.

Features
Display: Yes with backlight
DTMF: Yes
Mode of emission: F2D / F3E
Bluetooth: Version: 4.2 / Class: 2
Operating System: Yes, E2O-III
More
Electrical data
Frequency step: 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
Channels: 1100
Operating temperature: -20℃ to +60℃
Frequency stability: ±2.5 PPM
Operating voltage: 13.8 Volt (Negative Ground)
More
Transmitter
Power output (Watts): 5/25/50 Watts
Spurious Emission: ≤ 60 dB
Modulation type: F2D / F3E: Variable Reactance Modulation
Maximum deviation: ±5.0 kHz
Antenna impedance: 50 Ω
Microphone impedance: 2k Ω
DATA Jack impedance: 10k Ω

Receiver
Sensitivity 108-137 MHz AM: 0.8 μV typ for 10 dB SINAD
Sensitivity 137-140 MHz FM: 0.2 μV typ for 12 dB SINAD
Sensitivity 140-150 MHz FM: 0.2 μV typ for 12 dB SINAD
Sensitivity 150-174 MHz FM: 0.25 μV typ for 12 dB SINAD
Sensitivity 174-222 MHz FM: 0.3 μV typ for 12 dB SINAD
Sensitivity 222-300 MHz FM: 0.25 μV typ for 12 dB SINAD
Sensitivity 300-336 MHz AM: 0.8 μV typ for 10 dB SINAD
Sensitivity 336-420 MHz FM: 0.25 μV typ for 12 dB SINAD
Sensitivity 420-470 MHz FM: 0.2 μV typ for 12 dB SINAD
Sensitivity 470-540 MHz FM: 0.2 μV typ for 12 dB SINAD
Sensitivity 540-800 MHz AM: 0.8 μV typ for 12 dB SINAD
Sensitivity 800-900 MHz AM: 0.4 μV typ for 12 dB SINAD
Sensitivity 900-999.99 MHz AM: 0.8 μV typ for 12 dB SINAD
Intermediate frequency 1st: 58.05 MHz
Intermediate frequency 2nd: 450 kHz
Receiving system: Dual conversion superheterodyne
Strength of secondary radio waves: ≤4 nW
Audio power output (Internal speaker): 3W (8 Ω, THD10%, 13.8 V)
Audio power output (External speaker): 3W (8 Ω, THD10%, 13.8 V)
Selectivity (-6 dB/-60 dB) NFM/AM:: 12 kHz / 30 kHz

Mechanical data
Length (Radio unit): 132 mm
Height (Radio unit): 42 mm
Width (Radio unit): 139 mm
Length (Controller): 35 mm
Height (Controller): 40.5 mm
Width (Controller): 140 mm
Weight: 1100 gram
Antenna connector: UHF (PL) female (SO-239)
Microphone connector: RJ12

Inside the box
Transceiver: Yes
DC power cable: Yes
Installation manual: English
Microphone: Yes, SSM-85D DTMF Microphone
Control cable: Yes, 3 meters
Bracket for main body: Yes
Bracket for the controller: Yes
USB Cable: Yes
Fuse: Yes, Spare fuse (15A)
