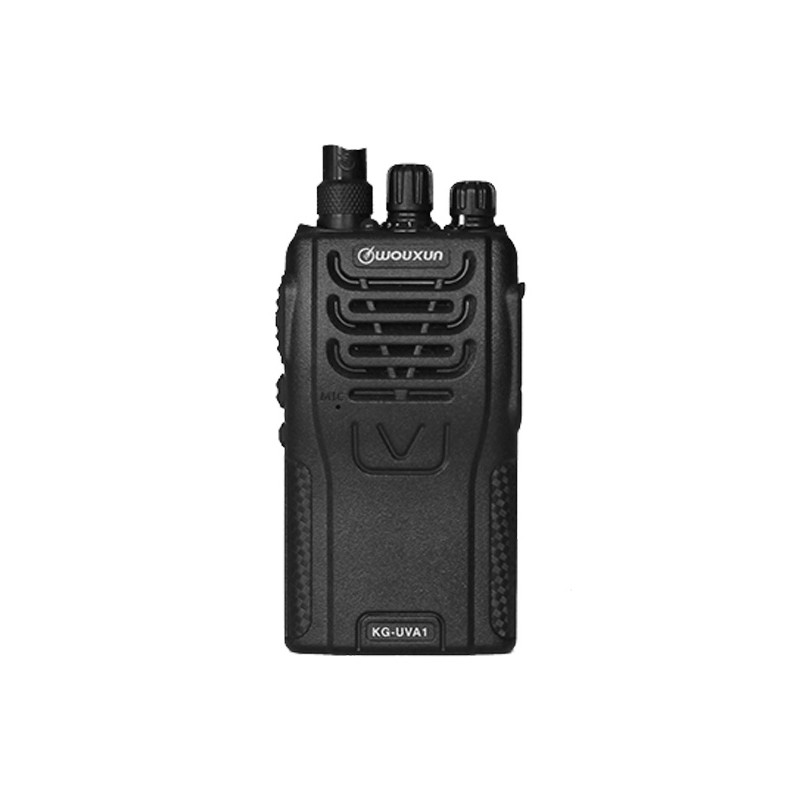

Wouxun KG-UVA1 (TX 144/432)

The KG-UVA1's dual-band capability ensures comprehensive coverage, allowing users to communicate effectively in both the VHF and UHF spectrums. Whether you're navigating outdoor adventures or coordinating critical operations, this transceiver adapts to your frequency requirements with precision.

Long-Lasting Power: Powered by a robust 1700 mAh Li-Ion battery pack, the KG-UVA1 offers extended usage and endurance. This ensures you stay connected when it matters most, providing peace of mind during prolonged outdoor activities or emergency situations.

Rugged Durability (IP55): Built to withstand the elements, the KG-UVA1 boasts an IP55 rating for dust and water resistance. Whether facing challenging weather conditions or operating in dusty environments, this transceiver remains reliable, making it an ideal companion for outdoor enthusiasts and professionals working in diverse settings.

With the free downloadable PC program software you can easily program your frequencies and change all setting to your own preferences*.
This all comes in the new and modern radio housing from Wouxun, which includes a heavy duty 3000 mAh battery pack, USB-C charging function (charging cable not included), table charging function, clear multi-color display, flashlight and IP65 waterproof index.
Our version is the approved European version with CE (RED).

Frequency range:
TX/RX: 50-54 MHz / 144-146 MHz / 430-440 MHz, RX: 76-108 MHz / 108-136 MHz (AM) / 136-174 MHz (FM) / 222-225 MHz (FM) / 320-400 MHz (FM) / 400-480 MHz (FM) / 714-999 MHz (FM)

Features
Display: Yes, large color display
Emergency (SOS) function: Yes
Flashlight: Yes
Priority channel scan: Yes
High/low power selection: Yes
Voice guide: English
Battery capacity: Li-ion 3000 mAh (7.4V)
Waterproof index: IP65
Accessory connector: 2-pin Kenwood (K)
Busy channel lockout: Yes
CTCSS / DCS: Yes, RX and TX, programmable by computer
Scan group: Yes
Call Code: Yes
Scrambler: Yes
Compander: Yes
AM Mode SW: Yes
Battery Save Mode: Yes
Transmit Timeout Timer: Yes
Transmit Timeout Alert: Yes
Multi Keys Options: Yes
Repeater PTT: Yes
Time Zone: Yes
Two menu system: Yes
FM Radio: Yes
PF options (programmable keys): Yes, PF1, PF2, PF3 modes
PTT ID transmit modes: Yes

Electrical data
Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
Channels: 999
Wide and narrow bandwidth selection: Yes
Operating temperature: -20℃ to +40℃
Transmitter
Power output (Watts): VHF: 5/2/1 Watts / UHF: 4/2/1 Watts
Work mode: F2D / F3E
Antenna impedance: 50 Ohm
Frequency stability: ±2.5 PPM
Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
Max. frequency deviation: Wide: ±5 kHz / Narrow: ≤±2.5 kHz
Audio response: 300-3000 Hz +1 to -3 dB
Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
Modulation distortion: ≤5%

Receiver
Audio distortion: ≤5%
Audio power output: ≤500 mW
Audio response: 300-3000 Hz +1 to -3 dB
Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB
Spurious radiation: Wide: ≥70 dB / Narrow: ≥70 dB
Sensitivity: UHF / VHF : -119.0 dBm SINAD 13 dB
Sensitivity 108 - 136 MHz (AM): 106.0 dbm SINAD 13 dB
Sensitivity 136 - 174 MHz: 119.0 dbm SINAD 13 dB
Sensitivity 216 - 260 MHz: 116.0 dbm SINAD 13 dB
Sensitivity 400 - 480 MHz: 119.0 dbm SINAD 13 dB
Sensitivity 714 - 999 MHz: 96.0 dbm SINAD 12 dB

Mechanical data
Length: 60 mm
Height: 133 mm (without antenna)
Width: 36 mm
Weight: 326 gram (including ANO-057 antenna)
Antenna connector: SMA male
USB-C charging: Yes

Inside the box
Transceiver: Yes
Battery: Yes, BLO-032 Li-ion Battery Pack (7.4V 3000 mAh)
Charger: Desk charger with AC adapter (CHA-035A - CHA-035B)
Installation manual: English
Antenna 66-88 MHz: Yes, ANO-057, 185 mm
Antenna 136-174 / 400-520 MHz: Yes, ANO-056, 145 mm
Belt clip: Yes
Hand strap: Yes
