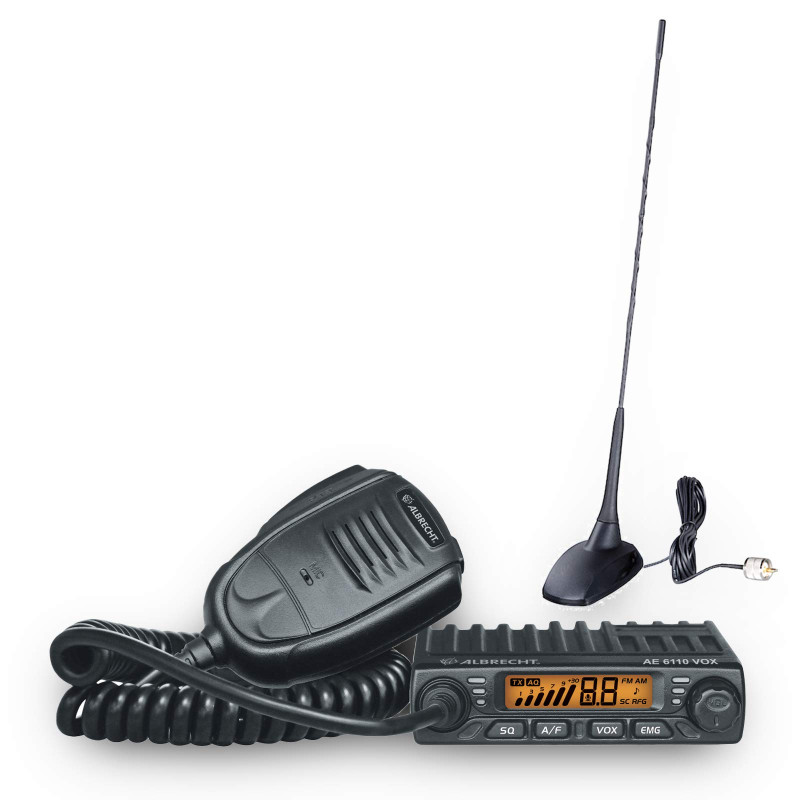

Albrecht - AE 6110 VOX starter pack

Features

Modulation: AM / FM

Multi-bands: Yes

Output power: 4 Watt / Duty cycle 10% @ 13.2V DC

Channels: 40 AM / FM

Display type: LCD display

Display colors: Green / Orange / Purple / Dark Blue / Light Blue / Yellow / Clear Blue

VOX Function: Yes

Noise blanker: Yes

Squelch: DSS (Dynamic Squelch System) / Manual squelch /

Emergency channel: Yes

Scan function: Yes

External speaker socket: Yes

Less

Electrical data (radio)

Voltage: 13,8 Volt / 24 Volt

Operating temperature: -10° to +55° C

Operating mode: F3E (FM) / A3E (AM)

Frequency control: PLL synthesizer

Frequency tolerance: 0.002 %

Transmitter

Audio frequency response: 300 Hz - 3 kHz

Modulation AM: from 85% to 95%

Modulation FM: 1.8 kHz to ± 0.2 kHz

Harmonic suppression: More than -36 dBm

Drain: 13.2 Volt: 1.6 A max.

Receiver

AM sensitivity: 0.7 µV for 10 dB

FM sensitivity: 0.5 µV for 20 dB SINAD

Frequency response: 300 Hz - 2.5 kHz

Adjacent channel selectivity: 60 dB

Maximum audio power: 2 Watt

Internal speaker: 8 Ohm, round

Receiving system: Dual conversion superheterodyne

IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz

Audio distortion: Less than 8% @ 1 kHz

Image rejection: 60 dB

Conducted spurious: More than 60 dB

Squelch: Adjustable, threshold less than 1 µV,

Less

Mechanical data (radio)

Length: 135 mm

Height: 37 mm

Width: 124 mm

Weight: 655 gram

Antenna connector: UHF (PL)

Mike connector: 6 pin connector

Less

Electrical data (antenna)

Electrical type: Central loaded

VSWR: ≤ 1.2

Bandwidth: 280 kHz ≤ 2.0

Power continues: 10 Watts (CW)

Power peak: 50 Watts (CW)

Impedance: 50 Ohm

Polarization: Linear vertical

Cable: Yes

Cable length: 3 meter / RG 58

Less

Mechanical data (antenna)

Materials: Copper, brass, stainless steel, fiberglass

Height: 630 mm

Weight: 575 gram

Mounting type: 90 mm magnet

Inside the box

Transceiver: 1 pcs

Microphone: 1 pcs
