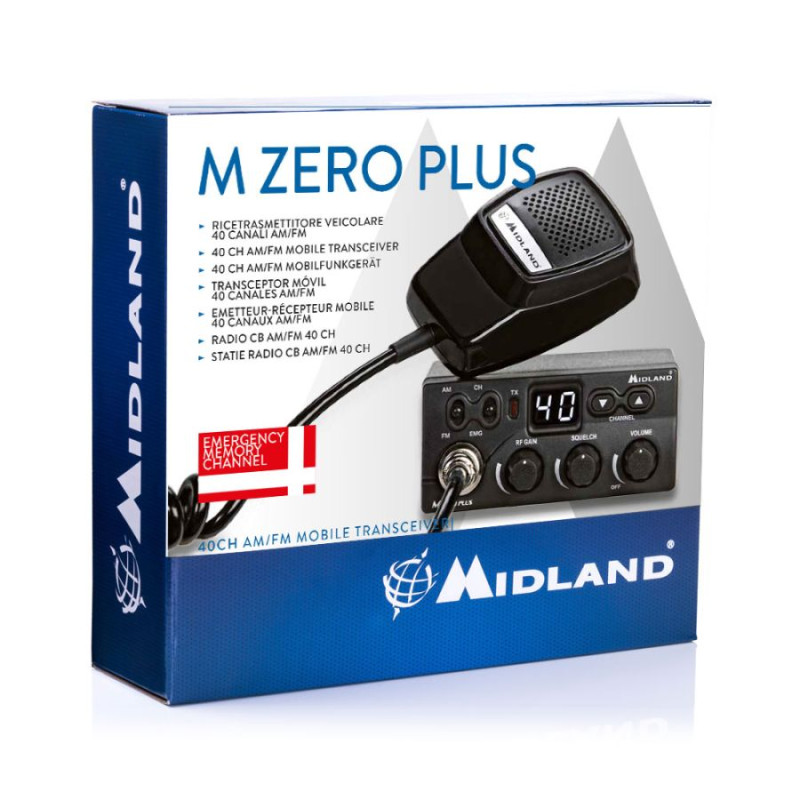

Midland - M-Zero Plus starter pack

Features

Modulation: AM / FM

Multi-bands: Yes

Output power: 4 Watt / Duty cycle 10% @ 12.6V

Channels: 40 AM / FM

Display type: LED display

Display colors: Green

Squelch: Digital squelch

External speaker socket: Yes

RF gain: Yes

Car socket connector: Yes

Less

Electrical data (radio)

Voltage: 13,8 Volt

Frequency tolerance: 0.002%

Transmitter

Modulation AM: 90%

Modulation FM: 1.9 kHz

Drain: 13.8 Volt: 2 A

Spurious radiation: 62 dB

Receiver

AM sensitivity: 1.0 μV for 20 dB SINAD

FM sensitivity: 1.0 μV for 20 dB SINAD

Frequency response: 450 Hz - 2.5 kHz

Adjacent channel selectivity: 60 dB at 10 kHz / 70 dB at 20 kHz

Maximum audio power: 2 Watt

Squelch sensitivity: Adjustable from 1.2 μV to 1mV

IF frequencies: Double conversion 1st 10.7 MHz / 2nd 455 kHz

Cross modulation: 45 dB

Less

Mechanical data (radio)

Length: 140 mm

Height: 54 mm

Width: 110 mm

Weight: 665 gram

Antenna connector: UHF (PL) female (SO-239)

Mike connector: 4 pin connector

Less

Electrical data (antenna)

Electrical type: Base loaded

Gain: 2-3 dBi

VSWR: ≤ 1.2:1

Power peak: 180 Watts (CW) short time

Impedance: 50 Ohm

Polarization: Linear vertical

Cable: Yes

Cable length: 4 meter / RG 174

Less

Mechanical data (antenna)

Materials: Stainless steel

Max wind resistance: 140 km/h

Height: 450 mm

Weight: 235 gram

Mounting type: Magnet

Inside the box

Transceiver: 1 pcs

Microphone: 1 pcs

Fixing screws: 1 set

Mounting bracket: 1 pcs

Power lead: 1 pcs

User Manual: English

Antenna: 1 pcs
