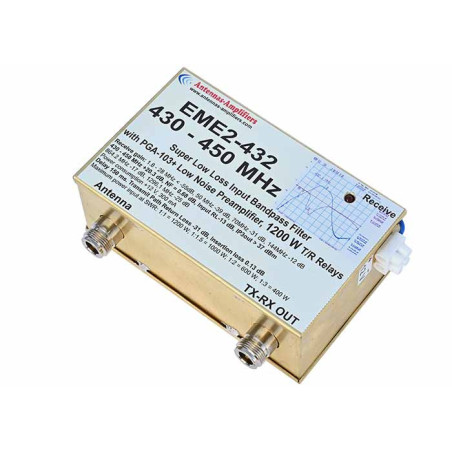

430-450MHz 1200W Low Noise Preamplifier
A Complete Solution for 430-450 MHz 1200 W Transmit-Receive 70 cm Competitions and Moon Bounce EME2-432
Vælg mellem normal version (N-connector)/7/16" version/udendørs version (N/ 7/16")
Description
A Complete Solution for 430-450 MHz 1200 W Transmit-Receive 70 cm Competitions and Moon Bounce EME2-432
QRO – Extreme power on transmit and low noise on receive with integrated Input band-pass filter.
With two connectors doesn’t need to split and receive a separate connector.
EME2-432 device consists of three components:
1. 70 cm 430 – 440 MHz Ultimate Receiving Bandpass Filter on the input side.
2. Wideband Low Noise Amplifier.
3. High Power High Current Relays + isolation relays.
4. By order, the Fail Safe Relay option
5. By order, integrated super high selectivity SAW filter with a bandwidth of just about 8 MHz. From 430-438 MHz
Receive gain:
| Frequency: | Gain: |
| 1.82 MHz | < – 60 dB |
| 3.80 MHz | < – 60 dB |
| 7.1 MHz | < – 60 dB |
| 14 MHz | < – 60 dB |
| 28 MHz | < – 54 dB |
| 50 MHz | < – 39 dB |
| 70 MHz | < – 31 dB |
| 144 MHz | < – 12 dB |
| 148 MHz | < – 12 dB |
| 432 MHz | +20 dB, NF= 0.68 dB, Input RL= -13dB, IP3out > 37dBm |
| 440 MHz | +20 dB, NF= 0.68 dB, Input RL= -13dB, IP3out > 37dBm |
| 450 MHz | +20 dB, NF= 0.68 dB, Input RL= -13dB, IP3out > 37dBm |
| 864 MHz | < – 17 dB |
| 1296 MHz | < – 25 dB |
Extreme Low Loss on transmit side thanks to RT/duroid® 5880 Laminate. About 0.13 dB.
With Excellent Wideband Return Loss 430 – 450 MHz -31 dB.
Transmit side of EME2-432. Measured Insertion Loss and Return Loss:
| Frequency: | Input Return Loss (S11): | Insertion Loss (S21): |
| 432 MHz | < – 31 dB | 0.13 dB |
| 440 MHz | < -31 dB | 0.13 dB |
Gain +20 dB, NF= 0.68 dB, Input RL= -13 dB, IP3out > 37dBm
