50MHz 1500W Low Noise Preamplifier
  • 50MHz 1500W Low Noise Preamplifier

50MHz 1500W Low Noise Preamplifier

Extras
Description

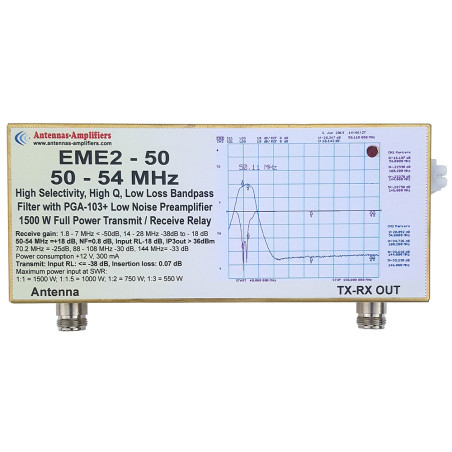

6 meter High Selectivity Low Loss Band Pass Filter 50 MHz – 54 MHz with PGA-103+ LNA and 1500 W QRO Transmit Receive Relays EME2-50N

Extreme high power device you always asked for. Has just two connectors so you don’t need to have split RX connector and revamped transceiver.

QRO made on low dielectric loss RT/duroid® 5880 Laminates (not on FR4 Important!).

EME 2-50N device consists of three components:



1. 50 – 51 MHz High Selectivity, High Q, Low Loss RX Bandpass Filter BPF (up to 54 MHz).
2. Wideband Low Noise Amplifier.
3. High Power Relays with “N” connectors.
Receive gain (Receive side):
Frequency: Gain:
1.82 MHz < – 100 dB
3.80 MHz < – 70 dB
7.1 MHz < – 60 dB
14 MHz < – 45 dB
28 MHz < – 30 dB
50 MHz + 19.5 dB
50.11 MHz + 19.5 dB
52 MHz + 20.1 dB
54 MHz + 19.5 dB
70 MHz < -32 dB
88 MHz < – 30 dB
108 MHz < – 30 dB
144 MHz < – 30 dB
148 MHz < – 30 dB



eme2-50-bandpass-amplifier-relay-attenuation-main-frequency



Transmit side of EME2-50N:



Frequency: Input Return Loss (S11): Insertion Loss (S21):
50 MHz < – 38 dB 0.06 dB
54 MHz < -37 dB 0.06 dB



Extremely low insertion loss and excellent return loss.



eme2-50-transmitting-side-Low-loss-high-adaptation



Important details:



Power consumption: + 12 V, 300 mA
Max. power SWR 1:1 1500 W
Max. power SWR 1:1.5 1100 W
Max. power SWR 1:2 800 W
Max. power SWR 1:3 600 W
Connectors: “N”
By order: SO239, SMA, 7/16 DIN
Outdoor version: +9 EUR



With this equipment, sequencer is mandatory. To switch from receiving to transmitting put on sequencer 200 ms delay
