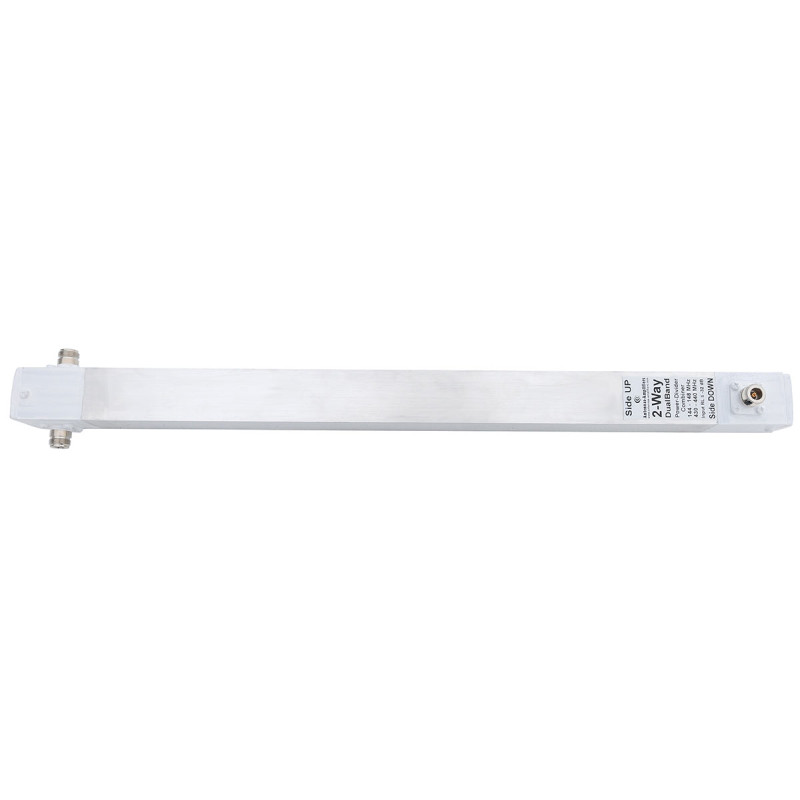

144/432MHz Dual Divider 2-Way “N” Con 1/4 wl + 5m coax
144 /432 MHz Power Divider 2 way with “N” Connectors , 1/4 wl 0.25 wave length.
This model works with the dual band antennas. Works with both bands.
This version includes 2x5m LMR195/RF240 coaxkabel (N-N han) for stacking of two antennas.
*note! if your dual band antennas has two separate connectors, you would need two of theese sets for combining two antennas. One for each band, total of 4 coax cables.
This divider has been tested and improved over the years. With it, we came up with a perfect adjustment to 50 ohms. Our return loss often exceeds 40 dB, which means that the SWR is far below 1.05!
Description
| Electrical specifications: | |
| Frequency range: | 144 – 148 MHz |
| Nominal Input Impedance: | 50 Ohm |
| Input Return Loss batter then: | – 30 dB |
| SWR Across Entire Band: | <1.05 |
| Maximum Power Input | 1500 W |
| Connector: | 3 x “N” |
| Mechanical specifications: | |
| Weight: | 0.9 kg |
| Transportation weight: | 1.9 kg |
Displayed SWR characteristic: From 144 to 148 MHz SWR is less than 1 : 1.1
S11 characteristics (Return Loss):
