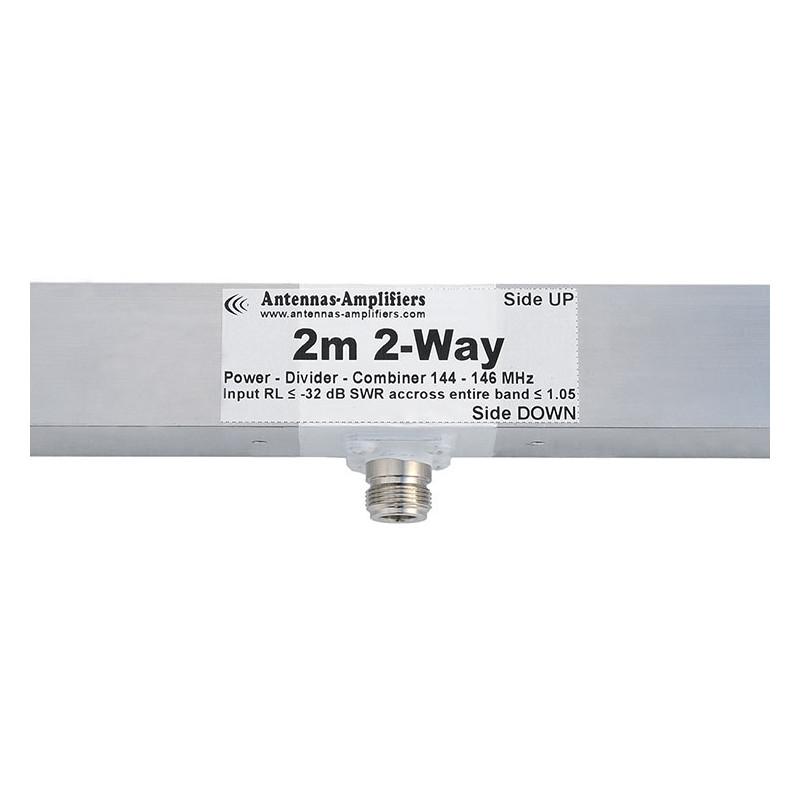

144 – 148 MHz Power Divider 2-Way “N” Connectors 1/2 wl
144 MHz 2 Way Power Divider Combiner 1/2 wl for 2 meter band.
Extra wide-band power splitter to combine two 144 MHz antennas. High power handling.
Description
Measured SWR on finished 2m 0.5wl Power Divider
| Electrical specifications: | |
| Frequency range: | 144 – 146 – 148 MHz |
| Nominal Input Impedance: | 50 Ohm |
| Input Return Loss batter then: | – 30 dB |
| SWR Across Entire Band: | <1.05 |
| Maximum Power Input | 1500 W |
| Connector: | 3 x “N” |
| Mechanical specifications: | |
| Weight: | 1.4 kg |
| Transportation weight: | 2.4 kg |
Measured SWR on finished 2m 0.5wl Power Divider
Measured Return Loss (S11) on Power Splitter covers 120 MHz to 170 MHz Frequency range for SWR less than 1:1.2
