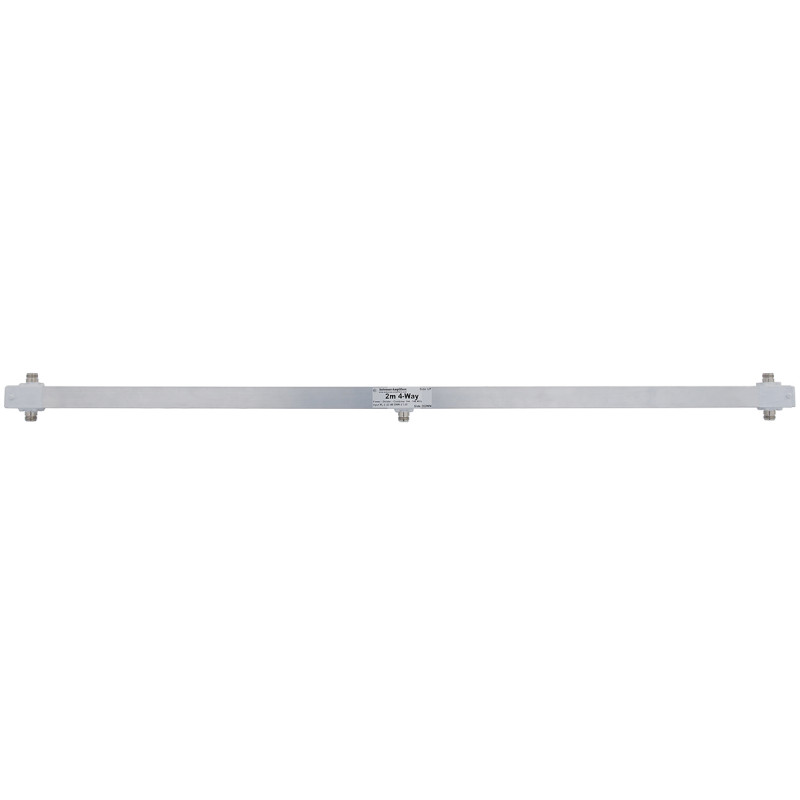

144 – 148 MHz Power Divider 4-Way “N” Connectors 1/2 wl
144 MHz 2 Way Power Divider Combiner 1/2 wl for 2 meter band.
Extra wide-band power splitter to combine two 144 MHz antennas. High power handling.
Description
144 MHz Power Divider 4 Port Combiner for 2 meter Band 1/2wl.
Divide – Combine four antennas in “H” Configuration. 0.5 wl length will be useful to shorten coaxial cables.
| Electrical specifications: | |
| Frequency range: | 144 – 148 MHz |
| Nominal Input Impedance: | 50 Ohm |
| Input Return Loss batter then: | – 30 dB |
| SWR Across Entire Band: | <1.05 |
| Maximum Power Input | 1500 W |
| Connector: | 5 x “N” |
| Mechanical specifications: | |
| Weight: | 1.2 kg |
| Transportation weight: | 1.9 kg |
Displayed SWR characteristic: From 144 to 148 MHz SWR is less than 1 : 1.1
S11 characteristics (Return Loss):
