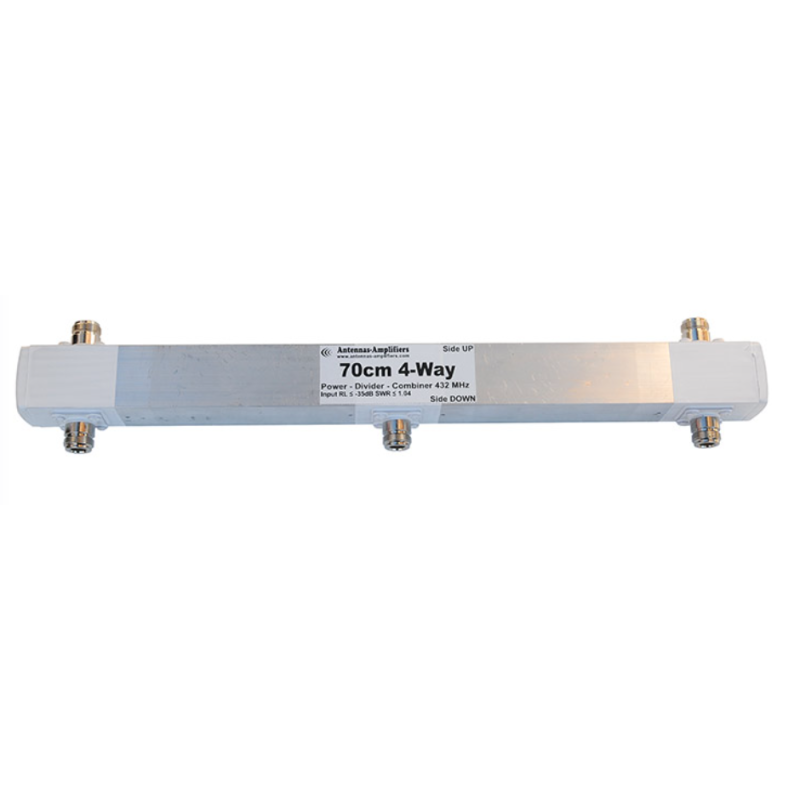

70 cm 4 Way Power Splitter for 432 MHz 0.5WL
70 cm 4 Way Power Splitter Combiner for 432 MHz 1/2 WL
Divide – combine four 432 MHz antennas stacked or bayed. High power handling with coaxial divider.
Description
70 cm 4 Way Power Divider Combiner 430 – 440 MHz band.
Split – Combine four antennas in vertical stack or in “H” frame.
5 x Teflon “N” connector.
Input return loss better than -27 dB.
Maximum power input 1 kW.
| Electrical specifications: | |
| Frequency range: | 430 – 440 MHz (420 – 450 MHz) |
| Nominal Input Impedance: | 50 Ohm |
| Input Return Loss batter then: | -29 dB |
| SWR Across Entire Band: | <1.1 |
| Maximum Power Input | 1000 W |
| Connector: | 5 x “N” |
| Mechanical specifications: | |
| Weight: | 0.7 kg |
| Transportation weight: | 1.8 kg |
Displayed SWR characteristic: From 430 to 440 MHz SWR is less than 1 : 1.1
4 Way Power-Divider-Combiner 430 – 440 MHz:
